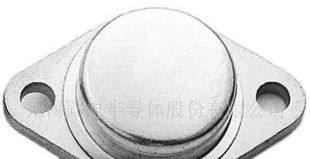

无锡固电ISC 供应2N6477三极管
| 价 格： | 1.80 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2N6477 | |
| 应用范围： | 功率 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·Collector-Emitter Sustaining Voltage-
: VCEO(SUS)= 120V(Min)
·LowCollector Saturation Voltage
: VCE(sat)= 1.0V(Max.)@IC= 1A
·Wide Area of Safe Operation
APPLICATIONS
·Series and shunt regulators
·High-fidelity amplifiers
·Power switching circuits
·Solenoid drivers
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 140 | V |
VCER | Collector-Emitter Voltage RBE= 100Ω | 130 | V |
VCEO | Collector-Emitter Voltage | 120 | V |
VCEV | Collector-Emitter Voltage VBE= -1.5V | 140 | V |
VEBO | Emitter-Base Voltage | 5 | V |
IC | Collector Current-Continuous | 2.5 | A |
ICM | Collector Current-Peak | 4 | A |
IB | Base Current | 1 | A |
PD | Collector Power Dissipation @ TC=25℃ | 50 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -65~150 | ℃ |
THERMAL CHARACTERISTICS
SYMBOL | PARAMETER | MAX | UNIT |
Rth j-c | Thermal Resistance, Junction to Case | 2.5 | ℃/W |
Rth j-a | Thermal Resistance, Junction to Ambient | 70 | ℃/W |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | MAX | UNIT |
VCEO(SUS) | Collector-Emitter Sustaining Voltage | IC= 100mA; IB= 0 | 120 | V | |
VCER(SUS) | Collector-Emitter Sustaining Voltage | IC= 100mA;RBE= 100Ω | 130 |
| V |
VCEV(SUS) | Collector-Emitter Sustaining Voltage | IC= 100mA;VBE= -1.5V | 140 |
| V |
VCE(sat)-1 | Collector-Emitter Saturation Voltage | IC= 1A; IB= 0.1A |
| 1.0 | V |
VCE(sat)-2 | Collector-Emitter Saturation Voltage | IC= 2.5A; IB= 0.5A |
| 2.0 | V |
VBE(on)-1 | Base-Emitter On Voltage | IC= 1A; VCE= 4V |
| 1.8 | V |
VBE(on)-2 | Base-Emitter On Voltage | IC= 2.5A ; VCE= 4V |
| 3.0 | V |
ICEV | Collector Cutoff Current | VCE= 130V; VBE= -1.5V VCE= 120V; VBE= -1.5V ;TC=150℃ |
| 2.0 10 | mA |
ICEO | Collector Cutoff Current | VCE= 80V; IB= 0 |
| 2.0 | mA |
IEBO | Emitter Cutoff Current | VEB= 5V; IC= 0 |
| 2.0 | mA |
hFE-1 | DC Current Gain | IC= 1A; VCE= 4V | 25 | 150 |
|
hFE-2 | DC Current Gain | IC= 2.5A; VCE= 4V | 5 |
|
|
