MIC，贴片二极管，三极管，二极管LL4148
| 价 格： | 13.50 | |
| 加工定制： | 是 | |
| 产品类型： | 稳压管 | |
| 是否进口： | 否 | |
| 品牌/商标： | ST/意法 | |
| 型号/规格： | LL4148 | |
| 材料： | 硅(Si) | |
| 主要参数： | 120V | |
| 用途： | 电器 | |
| 备注： | 保证120V以上电压 |
大量现货,国产芯片,耐压100V以上.
| LL4148 | |||||||||
| SWITCHING DIODE | REVERSE VOLTAGE:75 VOLTS | ||||||||
| CURRENT:0.15 AMPERES | |||||||||
| FEATURES | |||||||||
| · Silicon epitaxial planar diode | Mini-MELF | ||||||||
| · High speed switching diode | |||||||||
| · 500mV power dissipation | |||||||||
| · These diodes are also available in glass case | 0.063(1.6) | ||||||||
| Mini-MELF,SOD-323,SOT-323 | 0.055(1.4) | ||||||||
| 0.019(0.48) | |||||||||
| MECHANICAL DATA | 0.142(3.6) | 0.011(0.28) | |||||||
| Case:DO-35,Glass Case | 0.134(3.4) | ||||||||
| Polarity: Color band denotes cathode | inch(mm) | ||||||||
| Weight: 0.029 gram | |||||||||
| MAXIMUM RATIONGS AND ELECTRICAL CHARACTERISTICS | |||||||||
| Ratings at 25℃ ambient temperature unless otherwise specified. | |||||||||
| MAXIMUN RATINGS | |||||||||
| Parameters | Symbols | Value | UNITS | ||||||
| Reverse Voltage | VR | 75 | V | ||||||
| Peak Reverse Voltage | VRM | 100 | V | ||||||
| Average Forward Rectified Current Half Wave Rectification with Resistive Load at Tamb=25 ℃ and f≥50HZ | Io | 150 | mA | ||||||
| Forward Surge Current | IFSM | 500 | mA | ||||||
| Power Dissipation | Ptot | 5001) | mW | ||||||
| Junction Temperature | TJ | 175 | ℃ | ||||||
| Storage Temperature Range | TsTG | -65---+175 | ℃ | ||||||
| ELECTRICAL CHARACTERISTICS | |||||||||
| Parameters | Symbol | MIN | MAX | UNITS | |||||
| Forward Voltage at IF=100mA | VF | 1 | V | ||||||
| Leakage Current at VR=20V | IR | 25 | nA | ||||||
| at VR=75V | IR | 5 | μA | ||||||
| at VR=20V TJ=150℃ | IR | 50 | μA | ||||||
| Voltage Rise when Switching ON Tested with 50mA pulses tp=0.1us.Rise Time<30ns.fp=5 to 100HZ | Vfr | 2.5 | V | ||||||
| Capacitance at VF=VR=0V,f=1MHZ | Ctot | 4 | pF | ||||||
| Reverse Recovery Time=IF=10mA,VR=6V,IR=1mA,RL=100Ω | trr | 4 | ns | ||||||
| Thermal Resistance Junction to Ambient | RθJA | 3501) | K/W | ||||||
| Rectification Efficiency at 100MHZ,VFR=2V | nV | 0.45 | |||||||
| 1) Valid provided that leads at a distance of 8mm from case are kept at ambient temperature | |||||||||
深圳市新亚洲电子市场中一微电子经营部
公司信息未核实
- 所属城市：广东 广州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 温伟东
- 电话：86 0755 61306005/61329686
- 传真：86075561306005
- 手机：
- QQ ：
公司相关产品
三极管，整流管，1N4002
信息内容：1N4001--4007为整流二极管，他们平均整流电流为1A，主要的区别的确是反向耐压不同！4001是50V，4002是100V，4003是200V，4004是400V，4005是600V，4006是800V，4007是1000."

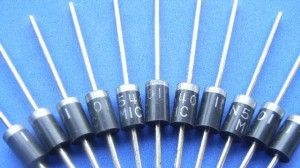

三极管，整流管，1N5401
