供应优质整流二极管M1~M7 DO-214AC
| 价 格： | 40.00 | |
| 品牌/商标： | 星海/东芝/MIC | |
| 型号/规格： | 1N4001~1N4007(M1~M7) | |
| 产品类型： | 整流管 | |
| 结构： | 面接触型 | |
| 材料： | 硅(Si) | |
| 封装形式： | 贴片型 | |
| 封装材料： | 塑料封装 | |
| 正向直流电流IF： | 1（A） | |
| 反向电压： | 50V~100V（V） |
dzsc/18/8429/18842952.jpg
FEATURES
☆★Glass passivated chip junction
☆★Ideal for surface mounted applications
☆★Low leakage
☆★High forward surge current capability.
☆★High temperature soldering guaranteed:
260 /10 seconds at terminals.
MECHANICAL DATA
☆★Case: Transfer molded plastic
☆★Epoxy: UL94V - 0 rate flame retardant.
☆★Polarity: Color band denotes cathode end
☆★Lead: Plated terminals solderable per MIL - STD - 202E
method 208C
☆★Weight: 0.002 ounce, 0.057 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
☆★Ratings at 25 ambient temperature unless otherwise specified
☆★Single phase, half wave, 60Hz, resistive or inductive load.
☆★For capacitive load derate current by 20%
- 所属城市：广东 东莞
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈煌全
- 电话：0769-85325785
- 传真：0769-85325785
- 手机：
- QQ ：

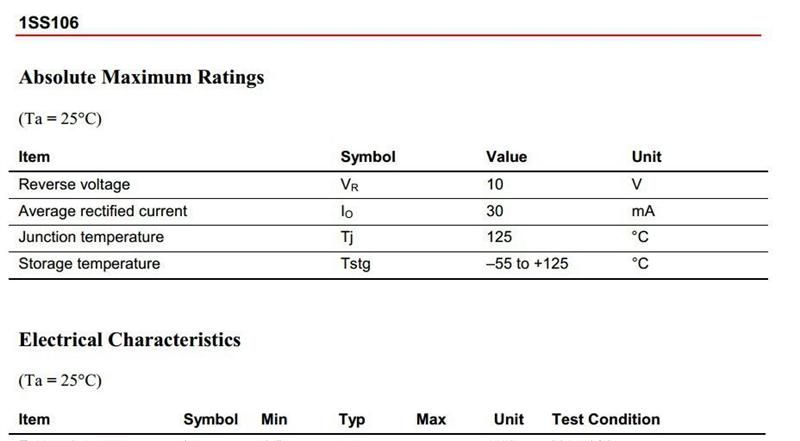

供应高频检波二极管1SS106 DO-35 日立/瑞萨RENESAS
信息内容：Features• Detection efficiency is very good.• Small temperature coefficient.• High reliability with glass seal..dzsc/18/8450/18845061.jpg

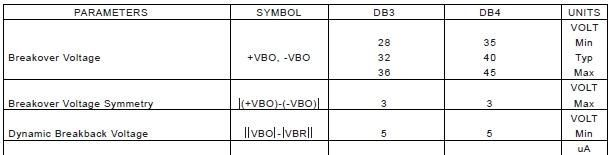

供应优质双向触发二极管 DB3
