厂家直销uf5408 uf5400二极管 UF5400 UF5408系列超快速二极管
| 价 格： | 245.00 | |
| 加工定制： | 是 | |
| 产品类型： | 整流管 | |
| 是否进口： | 否 | |
| 品牌/商标： | MPUL | |
| 型号/规格： | UF5400-UF5408 | |
| 材料： | 硅(Si) | |
| 主要参数： | 耐压1000V电流3.0A | |
| 用途： | 快速 | |
| 备注： | 封装形式：DO-27 |
| TYPE | I(AV) | VRRM | IFSM | VFM | IRM@VRRM | trr | CaseStyle | ||
| @IRM | VFM | I(AV) | TA=25℃ | TA=100℃ | |||||
| A | V | A | V | A | μA | μA | ns | ||
| UF5400 | 3.0 | 50 | 130 | 1.0 | 3.0 | 5.0 | 100 | 50 | DO-27 |
| UF5401 | 3.0 | 100 | 130 | 1.0 | 3.0 | 5.0 | 100 | 50 | DO-27 |
| UF5402 | 3.0 | 200 | 130 | 1.0 | 3.0 | 5.0 | 100 | 50 | DO-27 |
| UF5404 | 3.0 | 400 | 130 | 1.0 | 3.0 | 5.0 | 100 | 50 | DO-27 |
| UF5405 | 3.0 | 500 | 130 | 1.7 | 3.0 | 5.0 | 100 | 75 | DO-27 |
| UF5406 | 3.0 | 600 | 130 | 1.7 | 3.0 | 5.0 | 100 | 75 | DO-27 |
| UF5407 | 3.0 | 800 | 130 | 1.7 | 3.0 | 5.0 | 100 | 75 | DO-27 |
| UF5408 | 3.0 | 1000 | 130 | 1.7 | 3.0 | 5.0 | 100 | 75 | DO-27 |
dzsc/18/8411/18841163.jpg
- 所属城市：福建 厦门
- [联系时请说明来自维库仪器仪表网]
- 联系人： 张金平
- 电话：0592-6219390
- 传真：0592-6229248
- 手机：13860116760
- QQ ：
厂家直销1n5408大功率二极管 1N5408整流二极管
信息内容：TYPEI(AV)VRRMIFSMVFMIRM@VRRMCase Style@IRMVFMI(AV)TA=25℃TA=100℃AV AV AμAμA1N54003.0501701.03.010100DO-271N54013.01001701.03.010100DO-271N54023.02001701.03.010100DO-271N54033.03001701.03.010100DO-271N54043.04001701.03.010100DO-271N54053.05001701.03.010100DO-271N54063.06001701.03.010100DO-271N54073.08001701.03.010100DO-271N54083.010001701.03.010100DO-27 90*90芯片 dzsc/18/8427/18842773.jpgdzsc/18/8427/18842773.jpgdzsc/18/8427/18842773.jpg

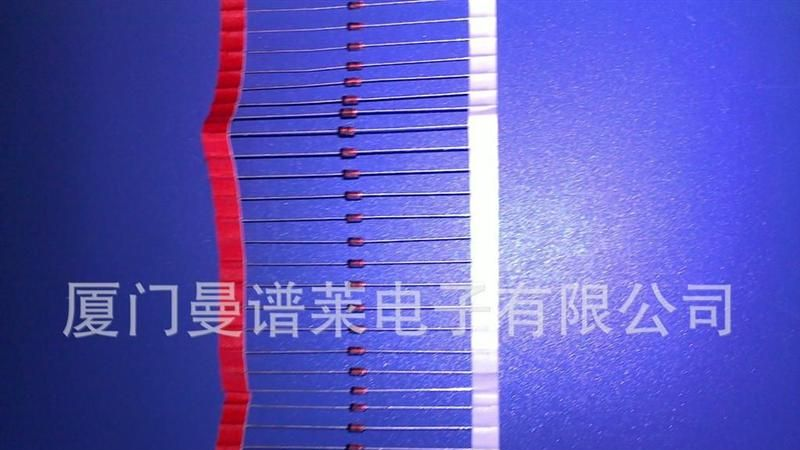

厂家直销1n4148二极管 1N4148高速开关二极管
信息内容：高速开关二极管（HIGH-SPEED SWITCHING RECTIFIERS）0.15-0.20AMPERE/DO-35TYPEI(AV)VRRMIFSMVFMIRM@VRRMtrrCaseStyle@IRMVFMI(AV)TA=25℃TA=100℃AVAVAμAμAns1N41480.151005001.0105754DO-351N41490.151005001.0105204DO-351N41500.20505001.02000.1504DO-351N41510.15755001.01500.05504DO-351N41520.15404000.81100.05302DO-351N41530.15754000.81100.05252DO-351N41540.15355001.0300.1252DO-351N44460.151005001.00305754.0DO-351N44470.151005001.00205754.0DO-351N44480.151005001.00105754.0DO-351N44490.151005000.6355754.0DO-351N44500.20404001.002000.05304.0DO-351N44510.15404000.510050304.0DO-351N44530.15304000.551050204.0DO-351N44540.15754001.00100.1504.0DO-351N45310.151005001.00100.025754.0DO-351N45320.15705001.00100.1502.0DO-351N45330.15405000.74200.05302.0DO-351N45340.15755000.74200.05502.0DO-351N45360.15355001.00300.1252.0DO-35dzsc/18/8428/18842884.jpgdzsc/18/8428/18842884.jpg
