长电一级代理开关二极管T4 1N4148WS SOD-323
| 价 格： | 面议 | |
| 产品类型： | 开关管 | |
| 是否进口： | 是 | |
| 品牌/商标： | 长电 | |
| 型号/规格： | T4(1N4148WS) | |
| 材料： | 锗(Ge) | |
| 主要参数： | 长电一级代理开关二极管 | |
| 用途： | 长电一级代理开关二极管 | |
| 备注： | 长电一级代理开关二极管 |
热销原装长电二极管T4(1N4148WS) SOD-323原厂原装，假一赔十！详细电气参数可致电索取！
BAV16WS/1N4148WS FAST SWITCHING DIODES
+
FEATURES
MARKING: T6, T4
Maximum Ratings and Electrical Characteristics, Single Diode @TA=25℃
Parameter Symbol Limits Unit
Non-Repetitive Peak reverse voltage VRM 100 V
Peak Repetitive Peak reverse voltage
Working Peak Reverse Voltage
DC Blocking Voltage
VRRM
VRWM
VR
100 V
RMS Reverse Voltage VR(RMS) 71 V
Forward Continuous Current IFM 300 mA
Average Rectified Output Current IO 150 mA
Peak forward surge current @=1.0μs
@=1.0s
IFSM
2.0
1.0
A
Power Dissipation Pd 200 mW
Thermal Resistance Junction to Ambient RθJA 625 ℃/W
Junction temperature Tj 125 ℃
Storage temperature TSTG -65~+150 ℃
Electrical Ratings @TA=25℃
Parameter Symbol Min. Typ. Max. Unit Conditions
VF1 0.715 V IF=1mA
VF2 0.855 V IF=10mA
VF3 1.0 V IF=50mA
Forward voltage
VF4 1.25 V IF=150mA
IR1 1 μA VR=75V
Reverse current
IR2 25 nA VR=20V
Capacitance between terminals CT 2 pF VR=0V,f=1MHz
Reverse Recovery Time trr 4 ns
IF=IR=10mA
Irr=0.1XIR,RL=100Ω
- 所属城市：江苏 苏州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 韦先生
- 电话：0512-50710709
- 传真：0512-50111209
- 手机：15950933050
- QQ ：
美丽微/扬杰/MCC原装超快速整流二极管RS1M
信息内容：产品型号:RS1M 产品名称: 品牌/产地:美丽微/扬杰/MCC封装规格:SMA 产品描述: 是否含铅:未知PDF分类:非IC器件 > 分立器件 > 整流器产品参数信息: 参数名 参数值 Max. Average Forward Rectified Current IF(AV) @ Ta (A) 1 Max. Average Forward Rectified Current IF(AV) @ Ta (°C) 90 Max. Repetitive Peak Reverse Voltage VRRM (V) 1000 Max. Repetitive Peak Forward Current IFRM (A) - Max. Peak Forward Surge Current IFSM (A) 30 Max. Forward Voltage Drop at Ta=25°C VF@ IF (V) 1.3 Max. Forward Voltage Drop at Ta=25°C VF@ IF (A) 1 Max. Reverse Current at Ta=25°C IR (μA) 5 Max. Reverse Recovery Time Trr (ns) 500数据手册:文件名:RS1A_M(05).pdf文件大小:70.36 KB下载次数:36下载:

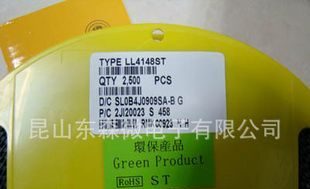

ST先科原装现货贴片LL-34开关二极管LL4148
