PRESS-FIT 车用整流二极管
| 价 格： | 1.00 | |
| 是否提供加工定制： | 是 | |
| 产品类型： | 整流管 | |
| 是否进口： | 否 | |
| 品牌/商标： | PN | |
| 型号/规格： | PF-14 8734 8735 | |
| 主要参数： | IF=35A 反向击穿电压大于400V | |
| 用途： | 车用发电机整流二极管 |
1/2 PRESS-FIT 各种规格整流二极管。
DIODE : 1/2 PF 35A POS/NEG
DIM(mm)：12.78
LEAD(mm)：1.28
|
SYMBOL | PF-14 |
UNITS | |||||||
3505 | 351 | 352 | 354 | 356 | 358 | 3510 |
| |||
峰值反向電壓 Maximum recurrent reverse voltage |
VRRM | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
Volts | |
RMS輸入電壓 Maximum RMS voltage |
VRMS | 35 | 70 | 140 | 210 | 280 | 350 | 420 |
Volts | |
直流阻斷電壓 Maximum DC blocking voltage |
VDC | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
Volts | |
平均正向整流電流 Maximum average forward rectified current at Tc=60℃ |
I(AV) |
50 |
Amps | |||||||
正向峰值浪涌電流 Peak forward surge current single sine-wave on rated load (JEDEC Method) |
IFSM |
500 |
Amps | |||||||
35A時正向瞬間電壓降 Maximum instantaneous forward voltage drop at 6A,Tj=25℃ |
VF |
1.0 |
Volts | |||||||
反向漏電流 Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ |
IR |
5.0 500.0 |
μA | |||||||
工作溫度和存儲溫度 Operating and Storage Temperature Range | TJ TSTG |
-55 TO +150 | ℃ | |||||||
- 所属城市：湖北
- [联系时请说明来自维库仪器仪表网]
- 联系人： 周慧
- 电话：8607124767777
- 传真：8607124777999
- 手机：
- QQ ：
大功率 整流二极管 MOTO PRESS-FIT 8224
信息内容：MOTO PRESS-FIT 各种规格整流二极管。 DIODE : MO PF 50A POS/NEG DIM(mm)：12.78 LEAD(mm)：1.5 SYMBOLPF-9 UNITS50055015025045065085010 峰值反向電壓Maximum recurrent reverse voltage VRRM50100200300400500600 VoltsRMS輸入電壓Maximum RMS voltage VRMS3570140210280350420 Volts直流阻斷電壓Maximum DC blocking voltage VDC50100200300400500600 Volts平均正向整流電流Maximum average forward rectified current atTc=60℃ I(AV) 50 Amps正向峰值浪涌電流Peak forward surge current single sine-wave on rated load (JEDEC Method) IFSM 500 Amps50A時正向瞬間電壓降Maximum instantaneous forward voltage drop at6A,Tj=25℃ VF 1.0 Volts反向漏電流Maximum DC reverse current TA=25℃at rated DC blocking voltage TA=100℃ IR 5.0500.0 μA工作溫度和存儲溫度Operating and Storage Temperature RangeTJTSTG -55 TO +150℃

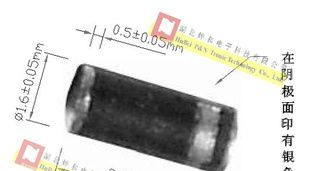

GL341M GL341A MINI MELF 整流二极管 DO-213AA
信息内容：SYMBOLGL341AGL341BGL341DGL341GGL341JGL341KGL341MUNITS峰值反向电压MaximumCurrent PeakReverse VoltageVRRM501002004006008001000Volts反向有效电压Maximum RMS VoltageVRMS3570140280420560700Volts直流阻断电压Maximum DC Blocking VoltageVDC501002004006008001000Volts正向平均整流电流TT=75℃Maximum Average Forward Rectified current I(AV)1.0Amps正向峰值浪涌电流Peak Forward Surge current, 8.3 ms SingleHalf Sine-wave Superimposed on Rated Load (JEDEC Method)IFSM10Amps1.0A直流电时正向瞬间电压降Maximum Instantaneous Forward Voltageat1.0AVF1.1Volts反向漏电流Maximum DC Reverse Current @ TA=25℃at Rated DC Blocking Voltage @ TA=125℃IR5.0250.0µA典型结电容Typical Junction Capacitance (Note 1)CJ4.0Pf典型热阻Typical Thermal Resistance (Note 2)RθJA125.0℃/W工作温度与存储温度Operating and Storage Temperature RangeTSTG/TJ-65 to +150℃
