供应快恢复二极管ES1A ES1D ES1F
| 价 格： | 0.14 | |
| 加工定制： | 是 | |
| 产品类型： | 整流管 | |
| 是否进口： | 是 | |
| 品牌/商标： | 台产/星海/东芝 | |
| 型号/规格： | ES1A,ES1B ES1C ES1D ES1F,ES1G,ES1H,ES1J | |
| 材料： | 硅(Si) |
Features
Glass passivated junction chip
For surface mounted application
Low profile package
Built-in strain relief,
Ideal for automated placement
Easy pick and place
Superfast recovery time for high efficiency
Glass passivated chip junction
High temperature soldering:
260OC/10 seconds at terminals
Plastic material used carries Underwriters
Laboratory Classification 94V-O
Mechanical Data
Cases: Molded plastic
Terminals: Solder plated
Polarity: Indicated by cathode band
Packing: 12mm tape per E1A STD RS-481
Weight: 0.064 gram
- 所属城市：广东 东莞
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈煌全
- 电话：0769-85325785
- 传真：0769-85325785
- 手机：
- QQ ：
供应ZMM1~ZMM75齐纳稳压二极管
信息内容：in MiniMELF case especially for automatic insertion.The Zener voltages are graded according to theinternational E24 standard. Smaller voltage tolerancesand higher Zener voltages are upon request. These diodes are also available in DO-35 case withthe type designation BZX55C... dzsc/18/8375/18837515.jpg"

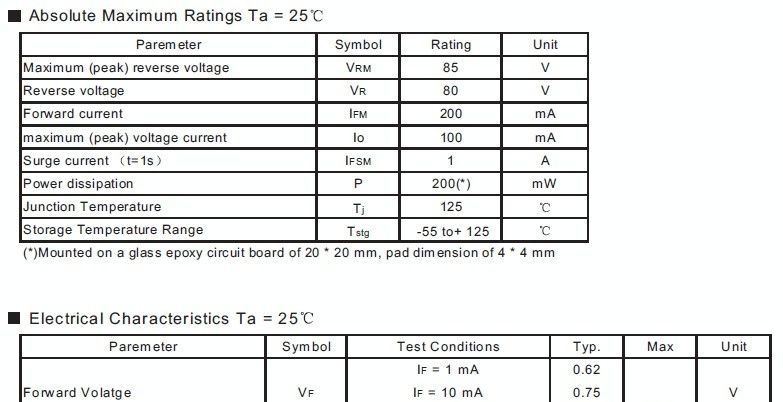

供应大量1SS352 SOD-323 贴片二极管
信息内容：FeaturesSmall PackageLow forward voltage :VF(3) = 0.98 (Typ)Fast reverse recovery time :trr = 1.6ns (Typ)Small total capacitance :CT = 0.5 pF(Typ)dzsc/18/8379/18837961.jpg
