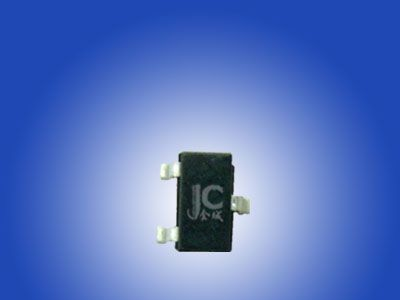

供应 场效应管 AO3434,AO3434A,AO3438
| 价 格： | 面议 | |
| 型号/规格： | AO3434A,AO3438 | |
| 品牌/商标： | AO | |
| 封装形式： | SOT-23 | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 贴片式 | |
| 包装方式： | 3000/盘 |
AO3434(带二极静电保护）
N-Channel Enhancement Mode Field Effect Transistor
General Description
The AO3434 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable for use as a load switch or in PWM applications. It is ESD protected.Standard Product AO3434 is Pb-free (meets ROHS & Sony 259 specifications).
VDS(V) = 30V
ID = 4.2A (VGS= 10V)
RDS(ON) < 52m Ω (VGS = 10V)
RDS(ON) < 75mΩ (VGS= 4.5V)
AO3438
N-Channel Enhancement Mode Field Effect TransistorFeatures
VDS= 20V
ID = 3A (VGS= 4.5V)
RDS(ON) < 62mΩ (VGS = 4.5V)
RDS(ON) < 70mΩ (VGS= 2.5V)
RDS(ON) < 85mΩ (VGS= 1.8V)
