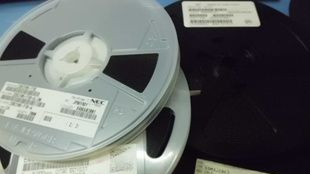

批发高频三极管2SC3357/RF ,SOT-89
| 价 格： | 0.55 |
| 是否提供加工定制：是 | 品牌：NEC/日本电气 | 型号：2SC3357 |
| 应用范围：放大 | 极性：NPN型 | 集电极允许电流ICM：0.1（A） |
| 集电极耗散功率PCM：1（W） | 截止频率fT：6.5（MHz） | 结构：点接触型 |
| 封装形式：贴片型 | 封装材料：塑料封装 |
SILICON TRANSISTOR
2SC3357
NPN SILICON EPITAXIAL TRANSISTOR
POWER MINI MOLD
DESCRIPTION
The 2SC3357 is an NPN silicon epitaxial transistor designed for
low noise amplifier at VHF, UHF and CATV band.
It has large dynamic range and good current characteristic
FEATURES
• Low Noise and High Gain
NF = 1.1 dB TYP., Ga = 8.0 dB TYP. @VCE = 10 V,
IC = 7 mA, f = 1.0 GHz
NF = 1.8 dB TYP., Ga = 9.0 dB TYP. @VCE = 10 V,
IC = 40 mA, f = 1.0 GHz
• Large PT in Small Package
PT : 2 W with 16 cm2 ´ 0.7 mm Ceramic Substrate.
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C)
Collector to Base Voltage VCBO 20 V
Collector to Emitter Voltage VCEO 12 V
Emitter to Base Voltage VEBO 3.0 V
Collector Current IC 100 mA
Total Power Dissipation PT* 1.2 W
Thermal Resistance Rth(j-a)* 62.5 °C/W
Junction Temperature Tj 150 °C
Storage Temperature Tstg -65 to +150 °C
* mounted on 16 cm2 ´ 0.7 mm Ceramic Substrate
