供应NBB15+U1+Z2倍加福接近开关 P+F传感器
| 价 格： | 面议 | |
| 型号/规格： | NBB15+U1+Z2 | |
| 品牌/商标： | 倍加福 |
dzsc/18/7884/18788422.jpg
客服信息
- 联系客服
- 更上一层楼：第二代电感式传感器
- 使用我们的VariKont®查找工具，很容易地找到您目前使用的传感器的替代型号 ...
- 15 mm flush
- 2 LEDs indicator for 360° visibility
帮助
Datasheet as PDF in following languages:
CES
ENG
FRA
DEU
ITA
POL
POR
RUS
SPA
SWE
Technical Data: NBB15-U1-Z2
| General specifications | ||
| Switching element function |
DC |
|
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 ... 12.15 mm | |
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 5 ... 60 V | |
| Switching frequency | 0 ... 400 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | tolerant | |
| Short-circuit protection | yes | |
| Voltage drop | ≤ 5 V | |
| Operating current | 2 ... 200 mA | |
| Off-state current | 0 ... 0.5 mA | |
| Indication of the switching state | 2 LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1133 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | max. 2.5 mm2 | |
| Housing material | PA/metal with epoxy powder coating | |
| Sensing face | PA | |
| Protection degree | IP68 / IP69K | |
| Mass | 225 g | |
| Note |
Tightening torque: 1.8 Nm (housing) Tightening torque: 1.0 Nm (Screw terminal) |
|
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 丁小姐/谢先生
- 电话：0755-23956626
- 传真：0755-23959410
- 手机：13537604926/13590238639
- QQ ：
NBN40-L2-E2-V1倍加福接近开关 三线DC PNP常开
信息内容：Inductive sensor NBN40-L2-E2-V1 技术参数 Documents CAD+CAE Approvals+Certificates 配套产品 Ask an Expert dzsc/18/7884/18788423.jpg 40 mm non-flush 3-wire DC Quick mounting bracket 4-way LED indicator Datasheet as PDF in following languages: Technical Data: NBN40-L2-E2-V1 General specifications Switching element function PNP NO Rated operating distance 40 mm Installation non-flush Output polarity DC Assured...

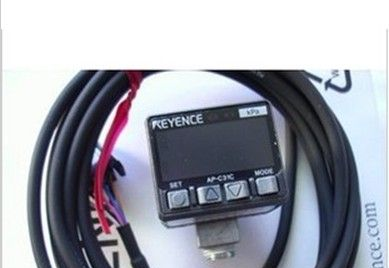

供应日本基恩士KEYENCE压力传感器AP-51、AP-51ZA、AP-51A原装全新包装
