供应P+F倍加福接近开关NBB5-18GM50-E2 全新原装现货
| 价 格： | 面议 | |
| 型号/规格： | NBB5-18GM50-E2 | |
| 品牌/商标： | P+F倍加福 |
Technical Data: NBB5-18GM50-E2-C
| General specifications | ||
| Switching element function |
PNP |
|
| Rated operating distance | 5 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 ... 4.05 mm | |
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.2 | |
| Reduction factor r304 | 0.6 | |
| Nominal ratings | ||
| Operating voltage | 10 ... 30 V DC | |
| Switching frequency | 0 ... 800 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 3 V | |
| Operating current | 0 ... 200 mA | |
| Off-state current | 0 ... 0.5 mA typ. 0.1 µA at 25 °C | |
| No-load supply current | ≤ 15 mA | |
| Constant magnetic field | 150 mT | |
| Alternating magnetic field | 150 mT | |
| Indication of the switching state | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1740 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Products with a maximum operating voltage of ≤36 V do not bear a CCC marking because they do not require approval. | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | Brass, PTFE coated | |
| Sensing face | PPS | |
| Protection degree | IP67 | |
- 返回顶部
Documents: NBB5-18GM50-E2-C
| Technical information | 语言 | 文件类型 | 文件大小 |
| Installation conditions | ENG | 144 KB | |
| Einbaubedingungen | GER | 147 KB |
- 返回顶部
Approvals+Certificates: NBB5-18GM50-E2-C
| Certificates | 证书号码 | 文件类型 | 文件大小 |
| US CA UL General Purpose | E87056 | LINK | --- |
| Europe Pepperl+Fuchs 2004/108/EC (EMC) Declaration of Conformity | PF 08 CERT 1262 | 357 KB | |
| US CA CSA | 1007121 (LR96321-2) | 101 KB |
- 返回顶部
配套产品: NBB5-18GM50-E2-C
| Accessories | 文件名称 |
| BF 18 | Mounting flange |
| EXG-18 | Mounting aid |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 丁小姐/谢先生
- 电话：0755-23956626
- 传真：0755-23959410
- 手机：13537604926/13590238639
- QQ ：

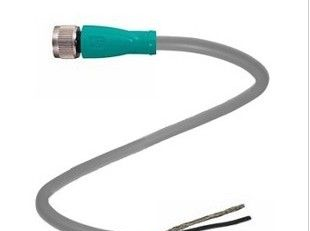

供应V1-G-2M-PVC倍加福光电开关原装全新现货
