供应SICK光电开关 WLL12-B5181全新原装现货
| 价 格： | 面议 | |
| 型号/规格： | WLL12-B5181 | |
| 品牌/商标： | SICK |
| sick Photoelectric sensors | |||||||||||||
|
|||||||||||||
| Product features | |||
| Sensing range min ... max: | 0 mm ... 200 mm, 0 mm ... 280 mm | ||
| Light source: | LED | ||
| Type of light: | Red light | ||
| Laser: | Red light | ||
| Sensing range max.: | 0 mm ... 200 mm, 0 mm ... 280 mm | ||
| Technical data | |||
| Design: | cuboid | ||
| Dimensions (W x H x D): | 15 mm x 49 mm x 53 mm | ||
| Supply voltage min ... max: | DC 10 ... 30 V1) | ||
| Ripple: | ≤ 5 Vpp | ||
| Power consumption: | ≤ 35 mA | ||
| Switching output: | PNP,Q / NPN, Q | ||
| Switching mode: | Light-/dark-switching, switchable | ||
| Output current max.: | 100 mA | ||
| Response time: | 360 µs | ||
| Switching frequency: | 1,300 Hz | ||
| Connection type: | Connector, M12, 5-pin | ||
| Circuit protection: | VSconnections reverse-polarity protected / Output Q and Q not short-circuit protected / Interference suppression | ||
| Enclosure rating: | IP 67 | ||
| Ambient operation temperature, min ... max: | -25 °C ... +60 °C | ||
| Ambient storage temperature, min ... max: | -25 °C ... +70 °C | ||
| Weight: | ca. 130 g | ||
| Housing material: | die-cast zinc | ||
| Series: | W12-2 | ||
| 1)Limit values |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 丁小姐/谢先生
- 电话：0755-23956626
- 传真：0755-23959410
- 手机：13537604926/13590238639
- QQ ：
供应施克SICK光电开关WT12L-2B550全新原装现货
信息内容：WT12L-2 Laser （小型） 背景遮蔽BGS 特性与规格 激光等级2级 可旋转900的M12插头或2m电缆 可调校和固定的背景遮蔽功能 Model Name Part Number Dimensions (W x H x D) Connection type Sensing range min ... max dzsc/18/7097/18709791.gifWT12L-2B510 1017959 ...

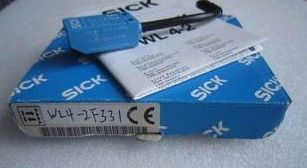

供应SICK光电开关 WL4-2F331原装现货
信息内容：工业用光电开关 光电开关和漫反射式光电开关 具有前景遮蔽功能（FGS）的漫反射式光电开关 具有前景遮蔽功能的漫反射式光电开关可检测设定距离内的物体。 所有在检测距离（背景前）和检测器之间、大于最小尺寸的物体都可以被检测到。 关景遮蔽功能是通过调整发射片和接收片的光学角度来实现的。为保证检测器可靠地发挥其功能，背景（如输送带）颜色必须相对亮一些和高度必须保持不变。 型号 订货号 WT 12-2P 440 1 016 150 WT 12-2P 140 1 016 148 ...
