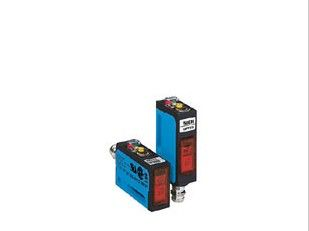

供应SICK西克漫反射光电开关WT160-F420全新原装现货
| 价 格： | 面议 | |
| 型号/规格： | WT160-F420 | |
| 品牌/商标： | SICK |
|
|
|||||||||||||||||||
| Product features | ||
| Sensing range min ... max: | 4 ... 60 mm | |
| Relating to: | Object with 90 % remission (based on standard white to DIN 5033) | |
| Adjustment: | Potentiometer, 2 rotations | |
| Light source: | LED | |
| Type of light: | Red light | |
| Wave length: | 680 nm | |
| Light spot diameter: | Approx. 3 mm at 25 mm distance | |
| Technical data | ||
| Design: | cuboid | |
| Housing design: | Vertical | |
| Dimensions (W x H x D): | 11 x 38 x 23 mm | |
| Supply voltage min ... max: | DC 10 ... 30 V | |
| Ripple: | ± 10 % | |
| Power consumption: | <= 25 mA | |
| Switching output: | PNP: open collector: Q | |
| Switching mode: | Light-/dark-switching via rotary switch | |
| Signal voltage PNP HIGH / LOW: | Vs - 1.8 V / approx. 0 V | |
| Max. output current: | 100 mA | |
| Response time: | <= 0.5 ms | |
| Switching frequency: | 1,000 Hz | |
| Connection type: | Connector, M8, 4-pin | |
| Circuit protection: | Vs connections reverse-polarity protected / In-/outputs short-circuit protected / Interference suppression / Outputs overcurrent and short-circuit protected | |
| Enclosure rating: | IP 67, IP 69K | |
| Ambient operation temperature, min ... max: | -25 °C ... +55 °C | |
| Ambient storage temperature, min ... max: | -40 °C ... +70 °C | |
| Weight: | ca. 20 g | |
| Housing material: | PBT | |
