全新德国原装P+F倍加福接近开关 NJ40+U1+E 现货
| 价 格： | 面议 | |
| 型号/规格： | NJ40+U1+E | |
| 品牌/商标： | （P+F)倍加福 |
全新德国原装P+F倍加福接近开关 NJ 40+U1+E 现货
需要的朋友欢迎来电咨询订购
0755-23056566/13632709261 林小姐
Technical Data: NJ40+U1+E
| General specifications | ||
| Switching element function |
NPN |
|
| Rated operating distance | 40 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | 0 ... 32.4 mm | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.45 | |
| Reduction factor r304 | 0.8 | |
| Nominal ratings | ||
| Operating voltage | 10 ... 60 V | |
| Switching frequency | 0 ... 100 Hz | |
| Hysteresis | 1 ... 10 typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 2.8 V | |
| Operating current | 0 ... 200 mA | |
| Off-state current | 0 ... 0.5 mA typ. 0.01 mA | |
| No-load supply current | ≤ 10 mA | |
| Operating voltage display | LED, green | |
| Indication of the switching state | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | up to 2.5 mm2 | |
| Housing material | PBT | |
| Sensing face | PBT | |
| Protection degree | IP68 | |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 丁小姐/谢先生
- 电话：0755-23956626
- 传真：0755-23959410
- 手机：13537604926/13590238639
- QQ ：

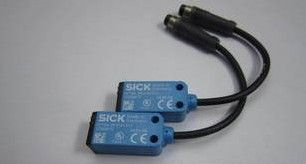

供应施克SICK光纤放大器WLL170-2P330全新原装现货
