全新原装德国P+F倍加福接近开关 NBB20-L2-B3-V1 现货
| 价 格： | 面议 | |
| 型号/规格： | NBB20-L2-B3-V1 | |
| 品牌/商标： | （P+F)倍加福 |
*特价销售*全新原装德国P+F倍加福接近开关 NBB20-L2-B3-V1 现货
需要的朋友欢迎来电咨询订购
0755-23056566/13632709261 林小姐
Technical Data: NBB20-L2-B3-V1
| General specifications | ||
| Switching element function | NO/NC programmable | |
| Rated operating distance | 20 mm | |
| Installation | flush | |
| Output polarity | AS-Interface | |
| Assured operating distance | 0 ... 16.2 mm | |
| Reduction factor rAl | 0.33 | |
| Reduction factor rCu | 0.31 | |
| Reduction factor r304 | 0.74 | |
| Reduction factor rBrass | 0.41 | |
| Nominal ratings | ||
| Operating voltage | 26.5 ... 31.9 V via AS-i bus system | |
| Switching frequency | 0 ... 150 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Operating voltage display | LED green | |
| Indication of the switching state | dual-LED, yellow/red | |
| Fault indication | dual-LED, yellow/red | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Products with a maximum operating voltage of ≤36 V do not bear a CCC marking because they do not require approval. | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical specifications | ||
| Connection type | Device connector M12 x 1 , 4-pin | |
| Housing material | PA | |
| Sensing face | PA | |
| Protection degree | IP69K | |
| Mass | 130 g | |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 丁小姐/谢先生
- 电话：0755-23956626
- 传真：0755-23959410
- 手机：13537604926/13590238639
- QQ ：
供应SICK施克磁性气缸开关 RZT1-03ZRS-KPO 全新原装现货
信息内容：Model Name VTE18-4P4212 Part Number 6013261 Product features Sensing range min ... max: 5 ... 400 mm Measuring condition: Scanned object with 90% remission (relative to standard white according to DIN 5033) Light source: LED Type of light: Infrared light ...

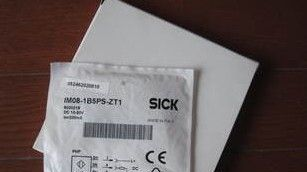

供应SICK电感式接近开关 IM08-1B5PS-ZT1 全新原装现货
