| ● SCR可控硅增强输出，过零点或者随机触发
● 纯新件SMD贴装工艺，可靠性极高
● DCB铜瓷键合基板，热循环次数高
● IP20防护标准，LED工作状态指示
● 内置RC吸收电路或压敏电阻器仰制突波发生 | ● SCR increased output, zero-crossing or random trigger
● The new piece of pure SMD mount technology, high reliability,
● DCB copper bonded ceramic substrates, the high number of thermal cycling
● IP20 standard of protection, LED working status indicator
● Built-in RC snubber or varistor surge occurred Yang System | | ◆型号说明 | |

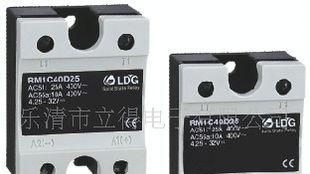

| 单相交流固态继电器 | 工作电压范围 Operating Voltage (47-63Hz): LDH3:75-440VAC, LDH6:75-660VAC | | 峰值电压 Transient Overvoltage: 850Vp 1600Vp | | 工作电流范围 Maximun Load Current: 150mA~60:60A, 80:80A, 100:100A, 120:120A, 150:150A, 200:200A, 240:240A, | | 断态漏电流 Maximum Off-State Leakage Current: ≤3mA | | 应答动作时间 Maximum Turn-On off Time: ON≤10mS, Off≤10mS | | 绝缘电压 Dielectric Strength, Input/Output/Base:≥2500VAC 1Mni | | 绝缘强度 Minimum Insulation Resistance: 500MΩ/500VDC | | 工作温度 Ambient Operating Temperature Range: -20℃~+70℃ | | 详细技术参数表: | 点击PDF文件 |
|
