供应LED驱动DM134
| 价 格： | 面议 | |
| 型号/规格： | DM134 | |
| 品牌/商标： | SITI |
LED Drivers--DM134/DM135
16-Bit Constant Current LED Drivers with 3.3v ~ 5v Supply Voltage
General Description
The DM134B、DM135B are constant current drivers specifically designed for LED display applications. The value of constant current can be varied using an external resistor. The devices include a 16-bit shift register, latches, and constant current drivers on a single Silicon CMOS chip.
Features
3.3V~5V CMOS Compatible Input
Maximum Clock Frequency: 25MHz (Cascade Operation)
Maximum Output Voltage: 17V
Package: DIP24, SOP24, SSOP24, QFN32
Package and Pin Layout: Pin layout and functionality are similar to those of the ST2221C.
(Each characteristic value is different.)
Constant Current Matching: (Ta = 25°C、VDD = 5.0V)
Chip-to-Chip: ± 10.0%
Bit-to-Bit:
DM134B:± 4.0% @ IOUT = 30 ~ 90mA
± 6.0% @ IOUT = 20 ~ 30mA
DM135B:± 4.0% @ IOUT = 20 ~ 60mA
± 6.0% @ IOUT = 5 ~ 20mA
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈先生
- 电话：0755-83228515/82566987
- 传真：0755-82566987
- 手机：15814009008
- QQ ：

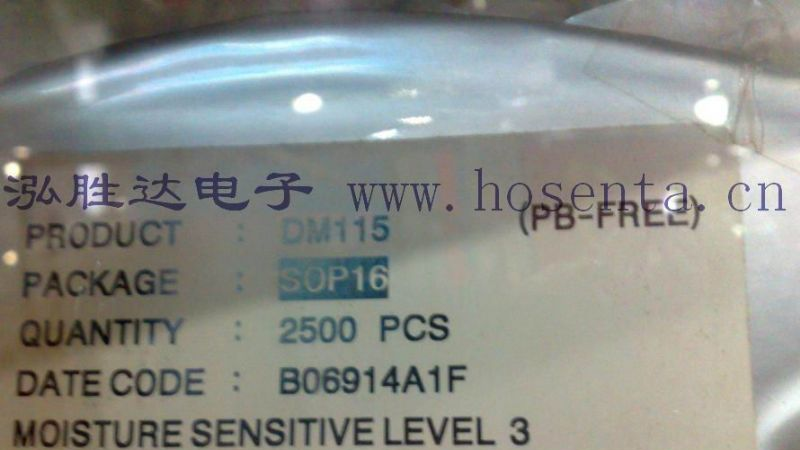

供应LED驱动--DM115
信息内容：LED DRIVERS--DM114/DM115 8-Bit CONSTANT CURRENT LED DRIVERS with 3.3v ~ 5v Supply Voltage General Description The DM114、DM115 is the constant current driver specifically designed for LED display applications. The value of constant current can be varied using an external resistor. The devices include an 8-bit shift register, latches, and constant current drivers on a single Silicon CMOS chip. Features Maximum Output Voltage: 17V Maximum Clock Frequency: 25MHz (Cascade Operation) Power Supply Voltage: 3.3V to 5.0V CMOS Compatible Input Package: PDIP16, SOP16, SSOP16 Package and Pin Layout: Pin layout and functionality are similar to those of the ST2221A.(Each characteristic value is different.) Constant Current Matching: (Ta = 25°C、VDD = 5.0V) Chip-to-Chip: ± 10.0% DM114: Bit-to-Bit: ± 4.0% @ IOUT = 30 ~ 90mA± 6.0% @ IOUT = 20 ~ 30mA DM115: Bit-to-Bit: ± 4.0...

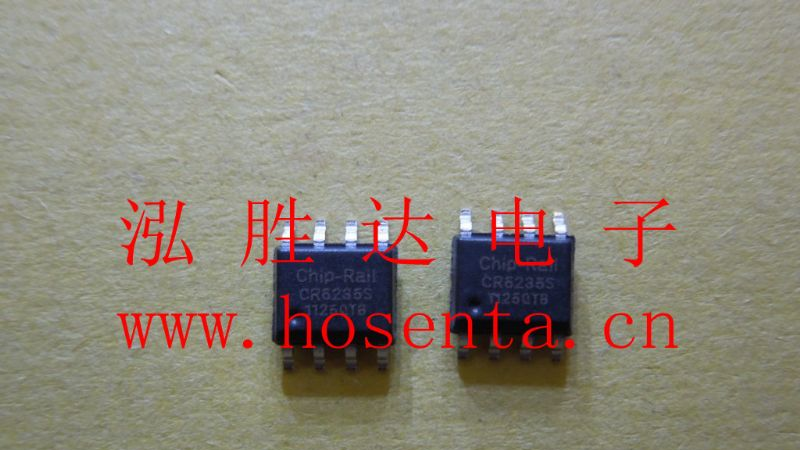

供应电源IC--CR6235S
