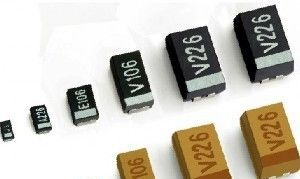

供应AVX贴片钽电容 TAJA105M050R A型
| 价 格： | 面议 | |
| 型号/规格： | TAJA105M050R | |
| 品牌/商标： | AVX | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 贴片式 | |
| 包装方式： | 卷带编带包装 | |
| 产品主要用途： | | |
| 引出线类型： | | |
| 特征： | | |
| 标称容量范围： | 1uf | |
| 额定电压范围： | 50V | |
| 温度系数范围： | ℃ |
CAPACITOR, CASE A, 1 UF, 50V
Capacitance: 1µF
Capacitance Tolerance: ± 20%
Voltage Rating: 50V
ESR: 6.6ohm
Operating Temperature Range: -55°C to +125°C
SVHC: No SVHC (19-Dec-2011)
Capacitor Mounting: SMD
Leakage Current: 0.5µA
No. of Pins: 2
Package / Case: A
Termination Type: SMD
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 范小姐
- 电话：0755-82565286
- 传真：0755-82565296
- 手机：13760297764
- QQ ：
供应AVX贴片钽电容 TAJB334K050R B型
信息内容：CAPACITOR, CASE B, 0.33UF, 50V Capacitance: 0.33µF Capacitance Tolerance: ± 10% Voltage Rating: 50V ESR: 12ohm Capacitor Case Style: 1210 Operating Temperature Range: -55°C to +125°C SVHC: No SVHC (19-Dec-2011) Capacitor Mounting: SMD External Depth: 1.9mm External Length / Height: 3.5mm External Width: 2.8mm Leakage Current: 0.5µA No. of Pins: 2 Operating Temperature Max: 125°C Operating Temperature Min: -55°C Package / Case: B Reel Quantity: 2000 Tape Width: 8mm Terminal Type: Surface Mount (SMD, SMT) ...
供应AVX贴片钽电容 TAJB224K050R 3528
信息内容：CAPACITOR, CASE B, 0.22 UF, 50V Capacitance: 0.22µF Capacitance Tolerance: ± 10% Voltage Rating: 50V ESR: 14ohm Operating Temperature Range: -55°C to +125°C SVHC: No SVHC (19-Dec-2011) Capacitor Mounting: SMD Leakage Current: 0.5µA No. of Pins: 2 Package / Case: B Termination Type: SMD
