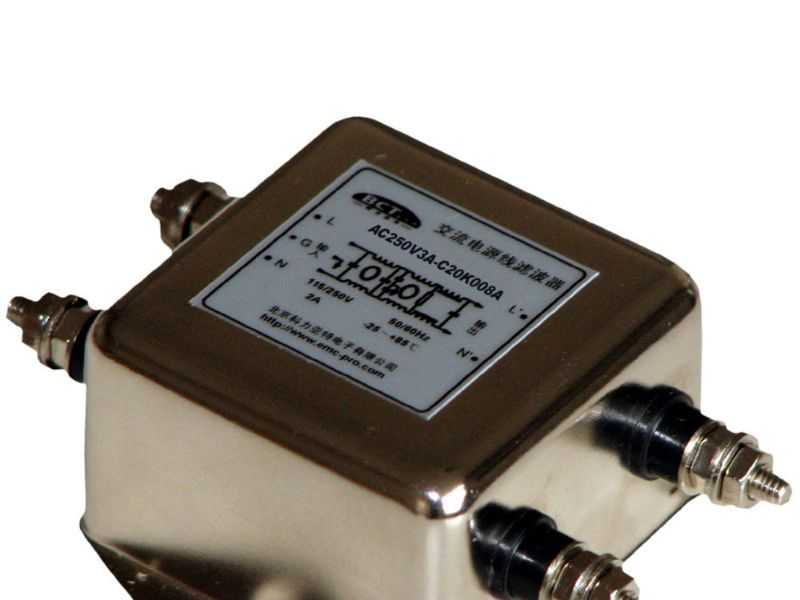

供应高性能单相电源滤波器
| 价 格： | 面议 | |
| 型号/规格： | AC250V2A-C30K008A | |
| 品牌/商标： | 科力亚特 | |
| 环保类别： | 普通型 | |
| 安装方式： | 螺栓式 | |
| 主要用途： | |
产品特点
Features
共模、差模增强型。
More excellent with common and differential mode choke, very high performance
优异的宽频抑制特性
very high performance for wide band EMI(10KHz—30MHz)
Customization design for different requirements such as performance,rated current,rated voltage, shape dimension and termination methods.
适用场合
Application
用于各种对噪声抑制需要较高的电子设备，可抑制连续或间隙性脉冲干扰。
For electronic equipments with high performance requirement for noise attenuation to Suppress the continuity or intermittent pulse interference.
技术参数
Technical Data
|
额定电压 Rated Voltage |
250VAC |
|||||||
|
工作频率 Operating Frequency |
50/60Hz |
|||||||
|
耐 电 压 Withstanding voltage |
线—线 Line to line |
1450VDC |
1min |
|||||
|
线—地 Line to ground |
1500VAC |
1min |
||||||
|
温度范围 temperature range |
-25--+85 |
|||||||
|
|
||||||||
|
型号 |
额定电流 |
电路类型 |
外形尺寸 |
端接方式 |
漏电流 |
|||
|
DP-1A11W |
1 |
1 |
1 |
电源线 |
0.3 |
|||
|
DP-3A11W |
3 |
1 |
1 |
电源线 |
0.3 |
|||
|
DP-3A |
3 |
2 |
1 |
电源线 |
0.3 |
|||
|
DP-6A |
6 |
2 |
2 |
电源线 |
0.3 |
|||
|
DP-10A |
10 |
2 |
3 |
插片 |
0.5 |
|||
|
DP-20A |
20 |
2 |
3 |
插片 |
0.5 |
|||
|
DP-30A |
30 |
2 |
4 |
螺栓 |
0.5 |
|||
|
DP-40A |
40 |
2 |
5 |
螺栓 |
0.5 |
|||
|
DP-60A |
60 |
2 |
6 |
螺栓 |
0.5 |
|||
|
DP-100A |
100 |
2 |
6 |
螺栓 |
0.5 |
|||
