供应全新施克SICK同轴光纤传感器 LL3-DS06
| 价 格： | 面议 | |
| 型号/规格： | LL3-DS06 | |
| 品牌/商标： | 施克SICK |
| 品牌： | 施克/SICK | 型号： | LL3-DS06 |
| 种类： | 光学 | 材料： | 聚合物 |
| 材料物理性质： | 绝缘体 | 材料晶体结构： | 非晶 |
| 制作工艺： | 集成 | 输出信号： | 开关型 |
| 防护等级： | IP67 |
|
|
|||||||||||||||||||||||||
| Product features | ||
| Sensing range min ... max: | 0.1 m ... 15 m | |
| Relating to: | Reflector PL80A | |
| Light source: | LED | |
| Type of light: | Red light | |
| Wave length: | 660 nm | |
| Light spot diameter: | Approx. 220 mm at 10 m distance | |
| Technical data | ||
| Design: | cuboid | |
| Dimensions (W x H x D): | 24.6 mm x 80.6 mm x 54 mm | |
| Angle of dispersion: | ca. 1.5 ° | |
| Supply voltage min ... max: | DC 10 ... 30 V | |
| Ripple: | <= 5 Vss | |
| Power consumption: | <= 45 mA | |
| Switching output: | PNP antivalent | |
| Signal voltage PNP HIGH / LOW: | > Vs - 2.5 V / approx. 0 V | |
| Max. output current: | 100 mA | |
| Response time: | <= 500 µs | |
| Switching frequency: | 1,000 Hz | |
| Connection type: | Connector, M12, 4-pin | |
| Circuit protection: | Vs connections reverse-polarity protected / All outputs short-circuit protected / Interference suppression | |
| Enclosure rating: | IP 66, IP 67 | |
| Ambient operation temperature, min ... max: | -40 °C ... +60 °C | |
| Ambient storage temperature, min ... max: | -40 °C ... +75 °C | |
| Weight: | ca. 100 g | |
| Front screen heating: | ||
| Polarisation filter: | ||
| Housing material: | ABS | |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 周小姐/刘先生/丁小姐
- 电话：0755-23956352/23054866/23050766
- 传真：0755-23959410
- 手机：13530031215/15815503553
- QQ ：
供应施克镜反射光电开关 WL9-2N130S09 原装
信息内容：品牌：SICK/施克 型号：WT12-2N140 结构类型：光电开关 检测方式：漫反射式 电源电压：DC 10 ... 30 V（V） 输出方式：NPN 使用环境温度：-40 °C ... +60 °C（℃） 产品认证：CE 用途：自动化 Model Name WT12-2N140 Part Number 1016145 Red light; consequently, fast alignment is possible ...

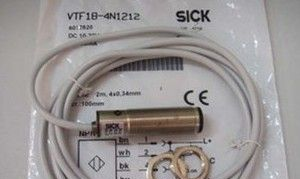

供应全新施克SICK光电开关 VTF18-4N1212
