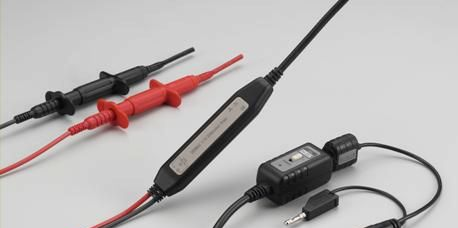

供应台湾三华SI-9001差分探头/ SI-9001高性能/小巧型差分探头
| 价 格： | 1.00 | |
| 型号/规格： | SI-9001差分探头 | |
| 品牌/商标： | 台湾三华 |
台湾三华SI-9001差分探头/ SI-9001高性能/小巧型差分探头
|
Specifications
|
|
|
Bandwidth |
25MHz |
|
Accuracy |
±2% |
|
Input Impedance |
4KΩ//5.5 p F each side ground |
|
Output Voltage |
|
|
-Swing(into 50 KΩ load) |
±7V |
|
-Offset(typical) |
＜±5mV |
|
-Noise（typical） |
0.7mV rms |
|
Power Requirements |
|
|
-Standard |
4×AA cells or 6V DC/60m A mains adaptor or regulated 9V DC/40m A mains adaptor |
|
-Options |
power leads |
|
Weighr |
400g (probe and PVC jacket) |
|
Dimension(L×W×H) |
170mm×63mm×21mm |
|
|
|
|
|
|
|
Specifications |
PT-8001 |
PT-8002 |
|
Attenuation Ratio |
1:10/100 |
1:20/200 |
|
CMRR(typical) |
-86dB@50Hz,-66dB@20MHz |
-80dB@50Hz,-60dB@20kHz |
|
Differential Input Voltage (DC+ Peak AC) |
±70V@1/10 ±700V@1/100 |
±140@1/20 ±1400@1/200 |
|
Common Mode Voltage (DC+Peak AC) |
±700V@1/10 ＆ 1/100 |
±1400V@1/20 ＆ 1/200 |
|
Absolute Max .Input (Each side to ground) |
1000V rms CAT Ⅲ |
1000V rms CAT Ⅲ |
Features:
·Up to ±1400V(DC+Peak AC) Differential and Common Mode
·Safety Certified
·Economical Cost
Applicstions:
·Switching Power Supply Design
·Motor Drive Design
·Electronic Ballast Design
·CRT Display Design
