Honeywell压力传感器 ASDX015D44R
| 价 格： | 面议 | |
| 型号/规格： | ASDX015D44R | |
| 品牌/商标： | HONEYWELL（霍尼韦尔） |
ASDX系列是Sensym公司检定合格的ICT代表产品的一种增强型品种，也是工业水平的一种SDX系列传感器。增强型ASDX传感器的外形尺寸要比SDX稍大，能提供高电平(4.0 V测量范围)的输出电压，价格便宜。该系列使用一个安装在电路板上的ASIC进行完全的校准和温度补偿。这类传感器适用于非腐蚀性，非离子的工作流体中，如空气和干燥的气体中。传感器可以用来测量值、差值和压力表的压力，范围从1 psi (ASDX01DN)到100 psi(ASDX100)。绝压传感器具有一个内部的真空基准，其输出电压与压力成正比。差压传感器允许将压力施加在检测膜片的两边，可以用在压力表或差压的测量中。所有ASDX传感器的精度都在±2.0%以内。传感器的工作特性是在采用单一的5V电源下获得的。传感器是根据ISO9001中所载的各项标准条款而设计和制造的。
ASDX 系列从0-1 psi直到0-100 psi的压力传感器
产品特点：
● 压敏电阻传感器
● 精密的ASIC
● 高电平输出
● 温度补偿
环境技术指标：温度范围
● 补偿后：0ºC到+85ºC
● 工作时：-20ºC到105ºC
● 存贮时：-40ºC到125ºC
● 振动：在20-2000Hz下，10克
● 冲击：50克11毫秒
● 寿命：最少为1百万次循环工作
应用场合
● 医疗仪器
● 气压测量
● HVAC控制
● 气动控制
注明：本司现货供应型号：
ASDX015A24R，ASDX030A24R，ASDX100A24R，ASDX001G24R，ASDX005G24R，ASDX015G24R，ASDX030G24R，ASDX100G24R，ASDX001D44R，ASDX005D44R，ASDX015D44R，ASDX030D44R，ASDX100D44R。
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李小姐
- 电话：0755-83996702/82861853/83017431
- 传真：0755-83017431
- 手机：13760397503
- QQ ：

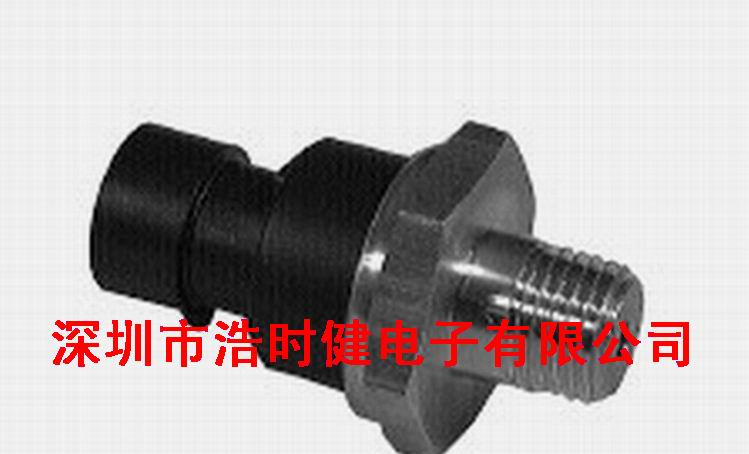

供应压力传感器 4040PC100G5D
