供应汽车继电器RAM-12/RAM-24
| 价 格： | 面议 | |
| 型号/规格： | RAM-12/RAM-24 | |
| 品牌/商标： | SUNHOLD |
汽车继电器RAM-12/RAM-24
RAM
Main Features:
Automotive Relay.
Contact rating up to 20amps
Size: 15.40x 12.10x 13.70
High Performance and Low profile
| LxWxH(mm) | 15.4x12.1x13.7 | |
| Arrangement | 1c,2a | |
| Contact Current | 20A | |
| Contact Rating | 1c: 14VDC 20A | |
| 2a: 14VDC 21Wx6(lamp load) | ||
| Coil VoLtage | DC | 6-24VDC |
| AC | ||
| Coil Power | DC | 0.6W |
| AC | ||
| Insulation Resistance | DC500V 100MΩ | |
| Dielectric Strength | 1000VAC | |
| between coil & contact | ||
| Life | Mechanically | 1x107 |
| Electriaclly | 1x105 | |
dzsc/18/6087/18608788.jpg
dzsc/18/6087/18608788.jpg
dzsc/18/6087/18608788.jpg
dzsc/18/6087/18608788.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：
供应小型大功率继电器SJZ-12
信息内容：小型大功率继电器SJZ-12 产品特性: ●高触点容量: 10A触点切换能力。 ●可提供密封型。 ●线圈低功耗。 产品用途: 1. 制冷设备 2. 自动控制, UPS3. 音响设备 2. 家用电器 3. 汽车控制装置等 dzsc/18/6087/18608794.jpg dzsc/18/6087/18608794.jpg dzsc/18/6087/18608794.jpg dzsc/18/6087/18608794.jpg

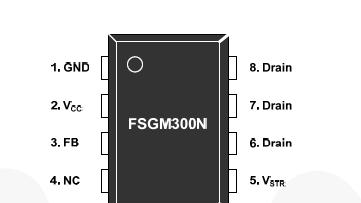

供应FSGM300N液晶电源板电源IC
信息内容：液晶电源板电源IC SMPS Power Switch, 30W, 650V---FSGM300N (SMPS，即Switch Mode Power Supply，指开关模式电源) 描述： The FSGM300N is an integrated Pulse Width Modulation (PWM) controller and SenseFET specifically designed for offline Switch-Mode Power Supplies (SMPS) with minimal external components. The PWM controller includes an integrated fixed-frequency oscillator, Under-Voltage Lockout (UVLO), Leading-Edge Blanking (LEB), optimized gate driver, internal soft-start, temperature-compensated precise current sources for loop compensation, and self-protection circuitry. Compared with a discrete MOSFET and PWM controller solution, the FSGM series can reduce total cost, component count, size, and weight; while simultaneously increasing efficiency, productivity, and system reliability. This device provides a basic platform suited for cost-effective design of a flyback converter. 标准包装 ： 50 系列 ： FPS™ 输出隔离 ： 隔离 频率范围 ： 61kHz ~ 73kHz ...
