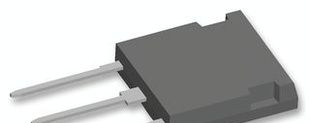

IXFR36N50P - MOSFET, N, I
| 价 格： | 25.00 |
| 品牌/商标 | IXYS | 型号/规格 | IXFR36N50P - MOSFET, N, ISOPLUS247 |
| 批号 | 08+ | 封装 | MOSFET, N, ISOPLUS247 |
| 营销方式 | 库存 | 产品性质 | 热销 |
| 类型 | 通信IC |
Description
- MOSFET, N, ISOPLUS247
- Transistor Polarity:N
- Max Voltage Vds:500V
- On State Resistance:0.19ohm
- Transistor Case Style:ISOPLUS-247
- Case Style:ISOPLUS-247
- Cont Current Id:19A
- Isolation voltage:2500V
- N-channel Gate Charge:93nC
- Power Dissipation Pd:156W
- Termination Type:Through Hole
- Transistor Type:MOSFET
- Typ Capacitance Ciss:5500pF
- Typ Voltage Vds:500V
- Typ Voltage Vgs th:5V
- Voltage Vgs Rds on Measurement:10V
- Max Reverse RecoveryTime, trr:200ns
- Rth:0.75
- 所属城市：上海 上海市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 侯林
- 电话：21-58217591
- 传真：21-58217591
- 手机：
- QQ ：
IXFH21N50F - MOSFET集成电路IC
信息内容：品牌/商标 IXYS 型号/规格 IXFH21N50F - MOSFET, N, RF, TO-247AD 批号 08+ 封装 TO-247AD 营销方式 库存 产品性质 热销 类型 通信IC DescriptionMOSFET, N, RF, TO-247ADTransistor Type:MOSFETMax Voltage Vds:500VCont Current Id:21AMax Power Dissipation:300WOperating Temperature Range:-55°C to +150°CCase Style:TO-247ADTermination Type:Through HoleTransistor Polarity:NOn State Resistance:0.25ohmPower Dissipation Pd:300WRise Time:12nsTransistor Case Style:TO-247ADTyp Capacitance Ciss:2600pFTyp Voltage Vds:500VTyp Voltage Vgs th:5.5VVoltage Vgs Rds on Measurement:10V
IXGF32N170集成电路IC
信息内容：品牌/商标 仙童 型号/规格 IXGF32N170 - IGBT, ISOI4-PAC 批号 08+ 封装 ISOi4-PAC 营销方式 库存 产品性质 热销 类型 通信IC DescriptionIGBT, ISOI4-PACTransistor Type:IGBTDC Collector Current:44AMax Voltage Vce Sat:3.5VMax Power Dissipation:200WCollector-to-Emitter Breakdown Voltage:1.7kVOperating Temperature Range:-55°C to +150°CTransistor Case Style:ISOi4-PACCase Style:ISOi4-PACJunction to Case Thermal Resistance A:0.65°C/WMax Current Ic Continuous a:26APin Configuration:SingleTermination Type:Through HoleTransistor Polarity:NPNVoltage Vces:1700V
