供应1242-100kg、1242-50kg称重传感器
| 价 格： | 面议 | |
| 型号/规格： | 1242-150KG | |
| 品牌/商标： | TEDEA |
FEATURES
• Capacities 50 - 250kg
• Aluminum construction
• Single point 400 x 400mm platform
• OIML R60 and NTEP approved
• IP66 protection
• Available with metric and UNC threads
OPTIONAL FEATURES
• EEx ia IIC T4 hazardous area approval
• FM approval available
DE
Model 1242 is a high accuracy, low profile,
low cost, two beam, single point load cell
ideally suited for industrial application
where space is limited. Typical applications
include platforms, hanging scales and
personal weighers.
This high accuracy load cell is OIML R60
class C6 approved. For hazardous
environments this load cell has EEx ia IIC
T4 level of approval, as well as Factory
Mutual approval.
A special humidity resistant protective
coating assures long term stability over the
entire compensated temperature range.
The two additional sense wires feed back
the voltage reaching the load cell.
Complete compensation of changes in
lead resistance due to temperature change
and/or cable extension can be achieved by
feeding this voltage into the appropriate
electronics.
APPLICATIONS
• Small platforms
• Hanging scales
• Personal scales
SPECIFICATIONS
* 50% utilization
** 60% utilization
PARAMETER VALUE UNIT
Rated capacity-R.C. (Emax) 50, 100, 150, 200, 250 kg
NTEP/OIML Accuracy class NTEP Non-Approved C3* C6**
Maximum no. of intervals (n) 5000 single 1000 3000 6000
Y = Emax/Vmin 10000 1400 6000 10000 Max. available
Rated output-R.O. 2.0 mV/V
Rated output tolerance 0.2 ±mV/V
Zero balance 0.2 +mV/V
Zero Return, 30 min. 0.0330 0.0300 0.0170 0.0083 ±% of applied load
Total Error 0.0200 0.0500 0.0200 0.0100 ±% of rated output
Temperature effect on zero 0.0023 0.0100 0.0023 0.0014 ±% of rated output/°C
Temperature effect on output 0.0010 0.0030 0.0010 0.00058 ±% of applied load/°C
Eccentric loading error 0.0049 0.0085 0.0049 0.0024 ±% of rated load/cm
Temperature range, compensated -10 to +40 °C
Temperature range, safe -20 to +70 °C
Maximum safe central overload 150 % of R.C.
Ultimate central overload 300 % of R.C.
Excitation, recommended 10 Vdc or Vac rms
Excitation, maximum 15 Vdc or Vac rms
Input impedance 415±15 Ohms
Output impedance 351±5 Ohms
Insulation resistance >2000 Mega-Ohms
Cable length 1.5 m
Cable type 6 wire, PVC, single floating screen Standard
Construction Plated (Anodize) aluminum
Environmental protection IP66
Platform size (max) 400 x 400 mm
Recommended torque 10.0 N*m
- 所属城市：山东 青岛
- [联系时请说明来自维库仪器仪表网]
- 联系人： 孟醒
- 电话：0532-85992035
- 传真：-
- 手机：13210193317
- QQ ：
供应HBB-100KG、HBB-150KG波纹管传感器
信息内容：FEATURES• Capacities: 10, 20, 50, 100, 200 and 250kg• Hermetically-sealed• Stainless steel construction• High side load tolerance• Easy installation• OIML C3 approval from 50kg to 250kg DESCRIPTIONHBB is a single-ended bending beam loadcell designed for multiple cell applications,such as low profile platform scales or smalltank scales when used with proper mountingaccessories. It is insensitive to sideload and capable of reversed loading.HBB is constructed of stainless steel andhermetically-sealed to IP68 providing excellentprotection against corrosive andwash-down environments.APPLICATIONS• Platform scales(multiple load cells)• Silo / hopper / tankweighing• Packaging machines• Dosing / filling• Belt scales / conveyorscales HBB梁式称重传感器：HBB-10kg HBB-20kg HBB-50kg HBB-100kg HBB-200kg HBB-250kg HBB-10kgSS HBB-20kgSS HBB-50kgSS HBB-100kgSS HBB-200kgSS HBB-250kgSS SPECIFICATIONS* Capacities: 50-250kgAll specific...

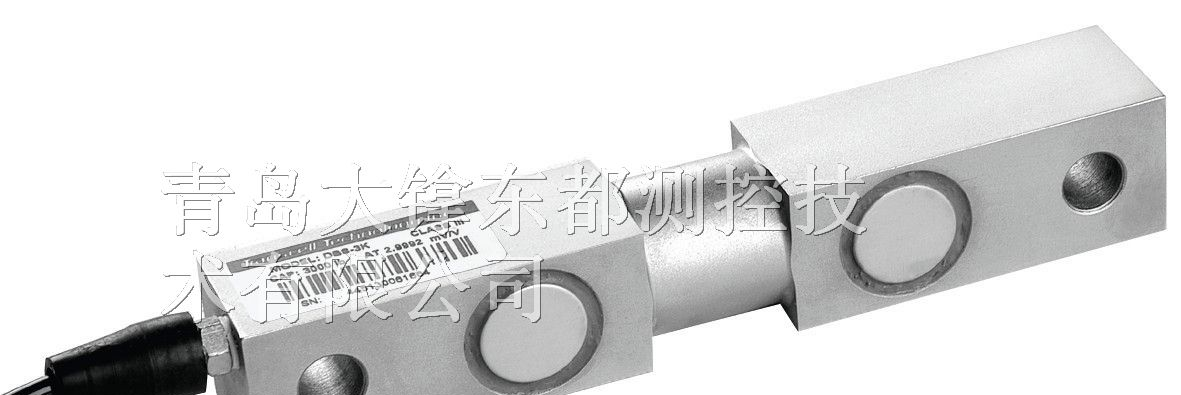

供应DBS-10Klb美国TRANscell传感器
