产品参数:
正向电压(Forward Voltage) VF=1.9.0-2.2V
正向电流(Forward Current) IF=15-20mA
反向电压(Reverse Voltage) Vr=5.0V
发光强度(Luminous Intensity) Iv=400-600 mcd
发光角度(Viewing Angle)120°deg
波长(Wavelength)585-595NM 发黄光
静电释放(ElectroStatic-Discharge) ESD=3000V
工作温度(Operation Temperature Range) Topr= -25℃ ~ +80℃
存储温度(Storage Temperature Rage) Tstg= -40℃ ~ +100℃
焊接温度(Soldering Temperature) Tsol= 260℃ (5秒)
产品参数: 正向电压(Forward Voltage) VF=3.0-3.2V正向电流(Forward Current) IF=20mA反向电压(Reverse Voltage) Vr=5.0V发光强度(Luminous Intensity) Iv=1200-1400 mcd发光角度(Viewing Angle)120°deg波段(wavelength)415-420NM 发绿光静电释放(ElectroStatic-Discharge) ESD=3000V工作温度(Operation Temperature Range) Topr= -25℃ ~ +80℃存储温度(Storage Temperature Rage) Tstg= -40℃ ~ +100℃焊接温度(Soldering Temperature) Tsol= 260℃ (5秒)

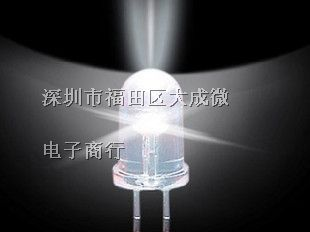

产品名称:5MM白发白长脚高亮 外观尺寸:5.0*8.7MM 工作电压:3.0-3.2V 工作电流:15-20MA 发光色温:6500-6700K 耗散功率:60MW 发光角度:25℃ 发光强度:14000-16000MCD 工作温度:-40℃- +90℃ 储存温度:-40℃- + 80℃ 焊锡条件:回流焊260℃5秒以内 手工焊250-275℃3秒内
