现货供160V/15W贴片三级管 2SC4027
| 价 格： | 0.75 |
| 品牌/商标 | UTC(台湾友顺） | 型号/规格 | 2SC4027 |
| 应用范围 | 功率 | 结构 | 面接触型 |
| 封装形式 | TO-252/TO251 | 封装材料 | 金属封装 |
| 集电极允许电流ICM | 1.5（A） | 集电极耗散功率PCM | 15（W） |
| 营销方式 | 代理 | 产品性质 | 热销 |
1，UTC高品质三极管，可直接替代三洋同等型号。
2，大批量现货供应！为您完全抛弃找货的烦恼和怕假货的痛苦！
3，可免费提供试样！全国范围支持支付宝（半月内因质量问题可退货），珠三角支持快递代收。
HIGH-VOLTAGE SWITCHING
APPLICATIONS
FEATURES
* High voltage and large current capacity.
* Fast switching time.
ABSOLUTE MAXIMUM RATING (Ta=25°C)
PARAMETER SYMBOL RATINGS UNIT
Collector to Base Voltage VCBO 180 V
Collector to Emitter Voltage VCEO 160 V
Emitter to Base Voltage VEBO 6 V
Collector Current IC 1.5 A
Collector Current (Pulse) ICP 2.5 A
Ta=25°C 1 W
Collector Dissipation
TC=25°C
Pc 15 W
Junction Temperature TJ 150 °C
Storage Temperature TSTG -55 ~+150 °C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 宋哲
- 电话：755-29743120
- 传真：755-29743120
- 手机：
- QQ ：

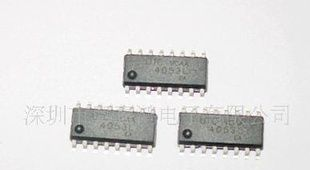

热销集成电路 模拟开关IC 4053 CD4053
信息内容：品牌/商标 UTC(台湾友顺） 型号/规格 4053 批号 NBAA 封装 DIP-16, SOP-16, TSSOP-16 营销方式 现货 产品性质 热销 类型 逻辑IC 1、台湾友顺UTC品牌IC。* Pin to Pin Replacement for CD4053 TRIPLE 2-CHANNEL ANALOG MULTIPLEXERS/DEMULTIPLEXERS DESCRIPTIONUTC 4053 is triple 2-channel analog multiplexers/demultiplexersfor application as digitally¨Ccontrolled analog switches.The device has three separate digital control inputs and an inhibitinput. It feature low ON impedance and very low OFF leakagecurrent. Control of analog signals up to the complete supply voltagerange can be achieved. FEATURES* Wide Analog Voltage Range: V ¨C = 3V~18V.DD EE(Note: Vmust beV )EE SS * Break-Before-Make Switching Eliminates Channel Overlap.Lead-free: 4...

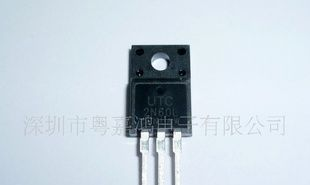

UTC（台湾友顺）代理特价热销MOS管塑封2N60 2N60L
信息内容：品牌/商标 UTC(台湾友顺） 型号/规格 2N60L 种类 绝缘栅(MOSFET) 沟道类型 N沟道 导电方式 耗尽型 材料 N-FET硅N沟道 耗散功率 23000（mW） 1、TO-220F（塑封插件）。50PCS/管，1K/盒。 2、UTC品牌MOS管，大芯片。 3、0-4个工作日发货。珠三角支持快递代收，全国范围支持支付宝。 2 Amps, 600/650 Volts N-CHANNEL POWER MOSFETDESCRIPTIONThe UTC 2N60 is a high voltage MOSFET and is designed tohave better characteristics, such as fast switching time, low gatecharge, low on-state resistance and have a high ruggedavalanche characteristics. This power MOSFET is usually used athigh speed switching applications in power supplies, PWM motorcontrols, high efficient DC to DC converters and bridge circuits.FEATURES* RDS(ON) =5Ω@VGS= 10V* Ultra Low gate charge ...
