16MM40K发射接收一体超声波
| 价 格： | 2.50 |
| 品牌/商标 | 国产 | 型号/规格 | TCT4016 |
| 种类 | 声波 | 制作工艺 | 薄膜 |
| 输出信号 | 模拟型 |
供应16MM40K发射接收一体超声波
TCT40-16dzsc/18/5204/18520451.jpg
dzsc/18/5204/18520451.jpg
dzsc/18/5204/18520451.jpg
dzsc/18/5204/18520451.jpg
S
Air Ultrasonic Ceramic Transducers
TCT40–16S-1.2.3
Asymmetric Beam Patterns
Temperature Compensated
Specification
Transceiver Center Frequency Bandwidt（-6dB） F.O.M. Transmitting sound Pressure Level at resonant frequency;0dB re 0.0002μbar per 10Vrms at 30cm Receiving Sensitivityat resonant frequency 0dB=1 volt/μbar Nominal Impedance（Ohm） Ringing（measuerd with rubber holder as per figure on next page） Capacitanceat 1KHz ±25% Max.Driving Voltage（pulse width 0.5ms interval 50ms） Total Beam Angle -6dB Operation Temperature Storage Temperature |
40.0±1.0Khz 1.2Khz 121dB min.
-65dB min.
900 1.5ms max.
2400pF 120Vp-p
45°±10° -30to80℃ -40to85℃ |
Allspecification taken typical at 25℃
Both lead pins and lead wires output are available
Temperature compensated type is optional Upon request
Model availablc:
TCT40-16S-1 | Aluminum Housing |
TCT40-16S-2 | Black Al- Housing |
TCT40-16S-3 | Plastic Housing |
Dimensions:dimensions are in mm
Impedance/Phase Angle vs.Frequency
Tested under 1Vrms Oscillation Level
Sensitivity/Sound Pressure Level
Tested under 10Vrms@30cm
Beam Angle:Tested at 40.0Khz frequency
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 方春
- 电话：0755-83294130
- 传真：0755-83294130
- 手机：
- QQ ：
16MM40K发射接收分立超声波传感器
信息内容：品牌/商标 国产 型号/规格 16MM40K发射接收分立超声波 种类 声波 制作工艺 铝外壳 输出信号 模拟型 16MM40K发射接收分立超声波dzsc/18/5917/18591731.jpgdzsc/18/5917/18591731.jpgdzsc/18/5917/18591731.jpgNU40C16TR-1OUTLINE DIMENSIONS (UNIT: mm) CHARACTERISTICSPart numberNU40C16TR-1ConstructionOpen structure typeCenter frequency40.0±1.0KHzSound pressure level115dB min.Sensitivity-66dB min.Capacitance2500Pf±20%Ringing1.4ms max.Maximum input voltage40Vp-pDirectivity60° (-6dB)Operating temperature-20℃~+70℃Storage Temperature-40℃~+85℃

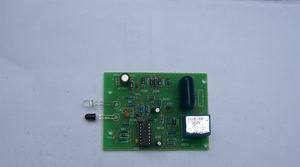

红外感应开关散件套件
