供应变频器电流传感器NCA1C-200A/SP4
| 价 格： | 面议 | |
| 型号/规格： | NCA1C-200A/SP4 | |
| 品牌/商标： | CSR |
| 直测式霍尔电流传感器 |
| 原边电流IP产生的磁通量聚集在磁路中,并由霍尔元件检测霍尔电压信号,经过放大器放大,该信号地反映原边电流。 |
dzsc/18/4811/18481113.jpg
◆外形尺寸（mm）
引脚输出： 1,+15V 2,-15V 3,Vout 4,0V(电源地) OFS,零点调节 GIN,幅度调节
引线输出： 红,+15V 蓝,-15V 黄,Vout 黑,0V(电源地)
dzsc/18/4811/18481113.jpg
|
◆使用说明 |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：

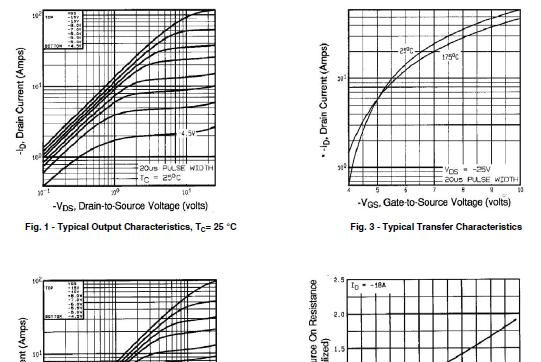

供应60V,12A P-CH,MOSFET管IRFI9Z34G
信息内容：FEATURES• Isolated Package• High Voltage Isolation = 2.5 kVRMS (t = 60 s;f = 60 Hz)• Sink to Lead Creepage Distance = 4.8 mm• P-Channel• 175 °C Operating Temperature• Dynamic dV/dt Rating• Low Thermal Resistance• Lead (Pb)-free AvailableDESCRIPTIONThird generation Power MOSFETs from Vishay provide thedesigner with the best combination of fast switching,ruggedized device design, low on-resistance andcost-effectiveness.The TO-220 FULLPAK eliminates the need for additionalinsulating hardware in commercial-industrial applications.The molding compound used provides a high isolationcapability and a low thermal resistance between the tab andexternal heatsink. This isolation is equivalent to using a 100micron mica barrier with standard TO-220 product. TheFULLPAK is mounted to a heatsink using a single clip or bya single screw fixing. dzsc/18/4811/18481114.jpg dzsc/18/4811/18481114.jpg dzsc/18/4811/18481114.jpg

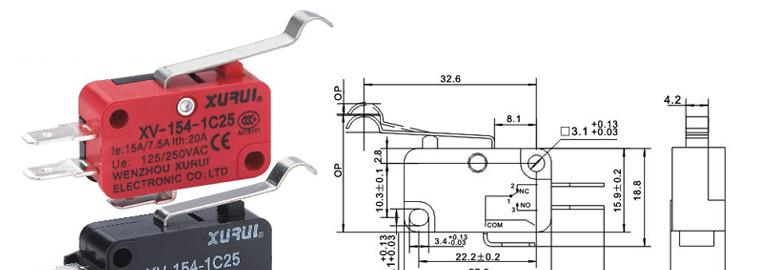

供应微动开关(枢轴R手柄型)XV-154-1C25
信息内容：微动开关(枢轴R手柄型)XV-154-1C25 dzsc/18/4832/18483279.jpg dzsc/18/4832/18483279.jpg dzsc/18/4832/18483279.jpg
