开环电流传感器TE50A,TE75A,TE100A,TE150A,TE200A,TE300A,TE400A,TE500A,TE600A
Features :
♦ Highly reliable Hall Effect device
♦ Compact and light weight
♦ Fast response time
♦ Excellent linearity of the output voltage over a wide input range
♦ Excellent frequency response (> 50 kHz)
♦ Low power consumption (12 mA nominal)
♦ Capable of measuring both DC and AC, both pulsed and mixed
♦ High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV)
♦ Extended operating temperature range
♦ Flame-Retardant plastic case and silicone encapsulate, using UL classified materials, ensures protection against environmental contaminants and vibration over a wide temperature and humidity range
dzsc/18/4767/18476794.jpg
dzsc/18/4767/18476794.jpg
dzsc/18/4767/18476794.jpg

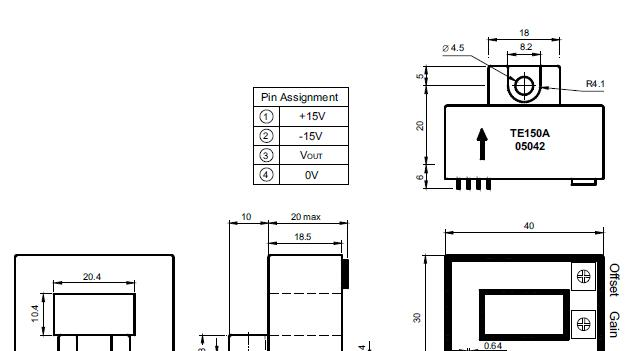

开环电流传感器TE50A,TE75A,TE100A,TE150A,TE200A,TE300A,TE400A,TE500A,TE600A Features : ♦ Highly reliable Hall Effect device ♦ Compact and light weight♦ Fast response time♦ Excellent linearity of the output voltage over a wide input range♦ Excellent frequency response (> 50 kHz)♦ Low power consumption (12 mA nominal)♦ Capable of measuring both DC and AC, both pulsed and mixed♦ High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV)♦ Extended operating temperature range♦ Flame-Retardant plastic case and silicone encapsulate, using UL classified materials, ensures protection against environmental contaminants and vibration over a wide temperature and humidity rangedzsc/18/4767/18476795.jpg dzsc/18/4767/18476795.jpg dzsc/18/4767/18476795.jpg
Features : ♦ Highly reliable Hall Effect device ♦ Compact and light weight♦ Fast response time♦ Excellent linearity of the output voltage over a wide input range♦ Excellent frequency response (> 50 kHz)♦ Low power consumption (12 mA nominal)♦ Capable of measuring both DC and AC, both pulsed and mixed♦ High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV)♦ Extended operating temperature range♦ Flame-Retardant plastic case and silicone encapsulate, using UL classified materials, ensures protection against environmental contaminants and vibration over a wide temperature and humidity rangeSpecification : ♦Nominal Current Range:100A-1200A♦Linear Range:±2700A♦Linearity:1%♦Offset Voltage:±40mV♦Nominal Output Voltage:4V±1%♦#Sensor:1♦Power:±15V±5%♦Secondary Connection: Connector♦Primary Connection:24mm*20mm HoleOther 1 : ...
