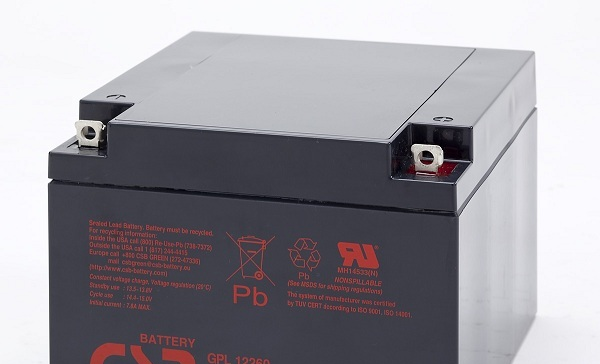

GPL12260(12V 26Ah) CSB电池
| 价 格： | 面议 | |
| 型号/规格： | GPL12260(12V 26Ah) | |
| 品牌/商标： | CSB |
CSB电池(CSB蓄电池) GPL12260
12V 26Ah
GPL12260 is a general purpose battery up to 8 years expected life under normal float charge.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.
GPL12260(12V 26Ah) CSB电池 规格书
局数 6
电压值 12V
安培数 26Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F)
重量(kg) Approx. 8.3 kg (18.3 lbs)
放电电流5秒(A) 350A (5sec)
内阻(mΩ) Approx. 11 mΩ
温度工作范围 Discharge: -15 ℃ ~50 ℃ (5 °F ~122 °F )
Charge: -15 ℃ ~40 ℃ (5 °F~104 °F)
Storge: -15 ℃ ~40 ℃ (5°F ~104 °F)
一般使用温度工作范围 25 ℃± 3 ℃ (77 °F± 5 °F)
浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25 ℃ (77 °F)
建议充电电流 7.8A
均充使用充电条件 14.4 to 15.0 VDC/unit Average at 25 ℃ (77°F )
自放电 It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃
端子 B1/B3/B3B-L terminal or recessed terminal to accept M5 bolt
电槽组材质 ABS(UL94-HB/File E50263)*Flammability resistance of(UL94-V0/File E88637) can be available upon request.
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 任远峰
- 电话：0755-83796159
- 传真：0755-83794083
- 手机：13602536280
- QQ ：

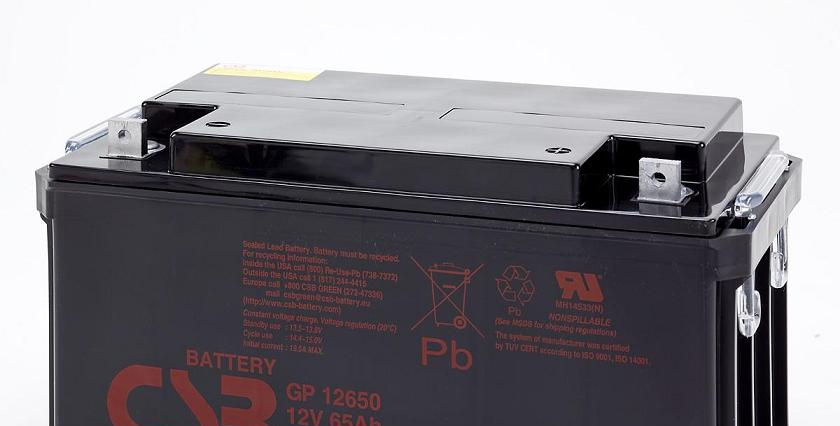

CSB电池 GP12650 (12V 65Ah)
信息内容：CSB电池(CSB蓄电池) GP12650 12V 65Ah GP12650 is a general purpose battery up to 5 years in standby service or more than 260 cycles at 100% discharge in cycle service. As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.规格书 局数 6 电压值 12V 安培数 65Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) 重量(kg) Approx. 20.0kg. (44.09 lbs.) 放电电流5秒(A) 500A (5sec.) 内阻(mΩ) Approx. 8.0 mΩ 温度工作范围 Discharge：-15℃~50℃(5°F~122°F)Charge：-15℃~40℃(5°F~104°F)Storage：-15℃~40℃(5°F~104°F) 一般使用温度工作范围 25°C ± 3°C (77°F ± 5°F) 浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25°C (77°F) 安培数/只 19.5A 循环寿命测试条件 14.4 to 15.0 VDC/unit Average at 25°C (77°F) 单一放电条件 CSB Batteries can be stored for more than 6 months at 25°C (77°F) Please charge batteries before using. For higher temperatures the time interval will be shorter. 端子 B4-L terminal to accept M6 nut & bolt 电槽组材质...

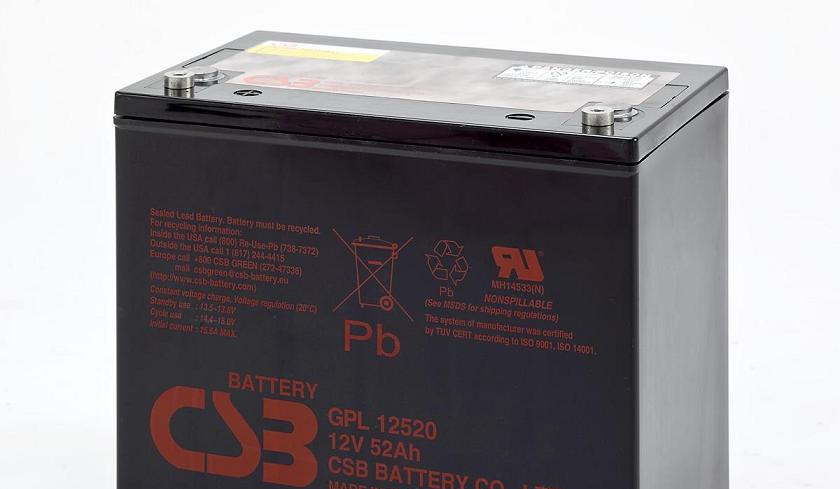

CSB电池 GPL12520 (12V 52Ah)
