供应CSB电池 GPL12880(12V88Ah)
| 价 格： | 面议 | |
| 型号/规格： | GPL12880 | |
| 品牌/商标： | CSB |
CSB电池(CSB蓄电池) GPL12880
12V 88Ah
GPL12880 is a general purpose battery up to 10 years expected life under normal float charge.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free
规格书
局数 6
电压值 12V
安培数 88Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F)
重量(kg) Approx. 29.7kg. (65.48 lbs.)
放电电流5秒(A) 800A (5 sec.)
内阻(mΩ) 4.5 mΩ
温度工作范围 Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
一般使用温度工作范围 25°C ± 3°C (77°F ± 5°F)
浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
安培数/只 26.4A
循环寿命测试条件 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
单一放电条件 CSB Batteries can be stored for more than 6 months at 25°C (77°F). Please charge batteries before using. For higher temperatures the time interval will be shorter.
端子 I2-Thread lead alloy recessed terminal to accept M6/M8 bolt
电槽组材质 Polypropylene(UL 94-V0/File E50955)*Flammability resistance of (UL 94-HB/File E216959) can be available upon request.
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 任远峰
- 电话：0755-83796159
- 传真：0755-83794083
- 手机：13602536280
- QQ ：

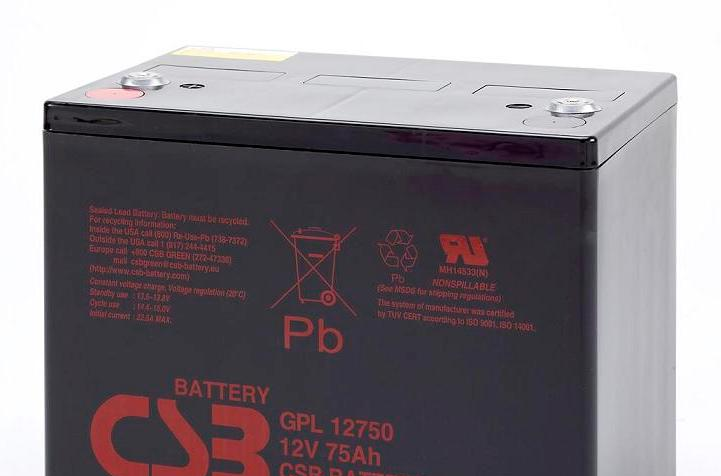

供应CSB电池 GPL12750(12V75Ah)
信息内容：CSB电池(CSB蓄电池) GPL12750 12V 75Ah GPL12750 is a general purpose battery up to 10 years expected life under normal float charge. As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free. 规格书 局数 6 电压值 12V 安培数 75Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F) 重量(kg) Approx. 25.6kg. (56.44 lbs.) 放电电流5秒(A) 800 A (5 sec.) 内阻(mΩ) Approx. 4.5 mΩ 温度工作范围 Discharge：-15℃~50℃(5°F~122°F)Charge：-15℃~40℃(5°F~104°F)Storage：-15℃~40℃(5°F~104°F) 一般使用温度工作范围 25°C ± 3°C (77°F ± 3°F) 浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25°C (77°F) 安培数/只 22.5 A 循环寿命测试条件 14.4 to 15.0 VDC/unit Average at 25°C (77°F) 单一放电条件 CSB Batteries can be stored for more than 6 months at 25°C (77°F). Please charge batteries before using. For higher temperatures the time interval will be shorter. 端子 I2-Thread lead alloy recessed terminal to accept M6/M8 bolt 电槽组材质 Polyp...

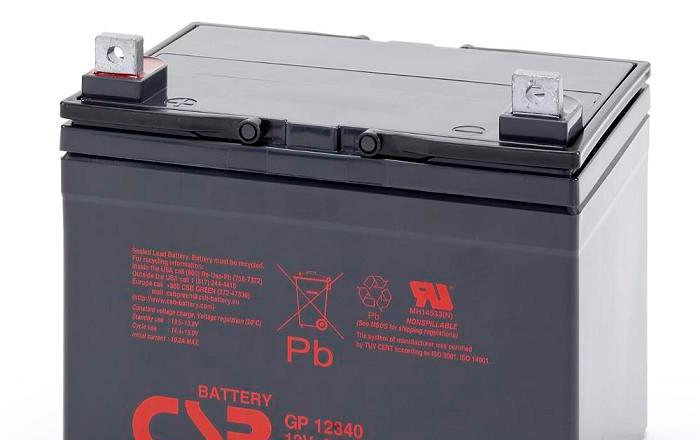

供应CSB电池 GP12340(12V34Ah)
信息内容：CSB电池(CSB蓄电池) GP12340 12V 34Ah GP12340 is a general purpose battery up to 5 years in standby service or more than 260 cycles at 100% discharge in cycle service. As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.规格书 局数 6 电压值 12V 安培数 34Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) 重量(kg) Approx. 10.48kg. (23.10 lbs.) 放电电流5秒(A) 380A (5sec.) 内阻(mΩ) Approx. 8.0 mΩ 温度工作范围 Discharge：-15℃~50℃(5°F~122°F)Charge：-15℃~40℃(5°F~104°F)Storage：-15℃~40℃(5°F~104°F) 一般使用温度工作范围 25°C ± 3°C (77°F± 5°F) 浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25°C (77°F) 安培数/只 10.2A 循环寿命测试条件 14.4 to 15.0 VDC/unit Average at 25°C (77°F) 单一放电条件 CSB Batteries can be stored for more than 6 months at 25°C (77°F) Please charge batteries before using. For higher temperatures the time interval will be shorter. 端子 B5-L terminal to accept M5 nut & bolt 电槽...
