GP1245(12V4.5Ah) CSB电池
| 价 格： | 面议 | |
| 型号/规格： | GP1245 | |
| 品牌/商标： | CSB |
CSB电池(CSB蓄电池) GP1245
12V 4.5Ah
GP1245 is a general purpose battery up to 5 years in standby service or more than 260 cycles at 100% discharge in cycle service.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free
规格书
局数 6
电压值 12V
安培数 4.5Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
重量(kg) Approx. 1.66kg. (3.66 lbs.)
放电电流5秒(A) 60A/90A (5sec.)
内阻(mΩ) Approx. 40.5mΩ
温度工作范围 Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
一般使用温度工作范围 25°C ±3°C (77°F ± 5°F)
浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
安培数/只 1.35A
循环寿命测试条件 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
单一放电条件 CSB Batteries can be stored for more than 6 months at 25°C (77°F) Please charge batteries before using. For higher temperatures the time interval will be shorter.
端子 F1/F2-Faston Tab187/250
电槽组材质ABS(UL94-HB/File E50263)*Flammability resistance of(UL94-V0/File E88637) can be available upon request.
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 任远峰
- 电话：0755-83796159
- 传真：0755-83794083
- 手机：13602536280
- QQ ：
GP1272(12V7.2Ah) CSB电池
信息内容：CSB电池(CSB蓄电池) GP1272 12V 7.2Ah GP1272 is a general purpose battery up to 5 years in standby service or more than 260 cycles at 100% discharge in cycle service. As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.规格书 局数 6 电压值 12V 安培数 7.2Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) 重量(kg) Approx. 2.40kg. (5.29 lbs.) 放电电流5秒(A) 100A/130A (5sec.) 内阻(mΩ) Approx. 23mΩ 温度工作范围 Discharge：-15℃~50℃(5°F~122°F)Charge：-15℃~40℃(5°F~104°F)Storage：-15℃~40℃(5°F~104°F) 一般使用温度工作范围 25°C ± 3°C (77°F ± 5°F) 浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25°C (77°F) 安培数/只 2.16A 循环寿命测试条件 14.4 to 15.0 VDC/unit Average at 25°C (77°F) 单一放电条件 CSB Batteries can be stored for more than 6 months at 25°C (77°F) Please charge batteries before using. For higher temperatures the time interval will be shorter. 端子 F1/F2-Faston Tab187/250 电槽组材质 ABS(UL94-HB...

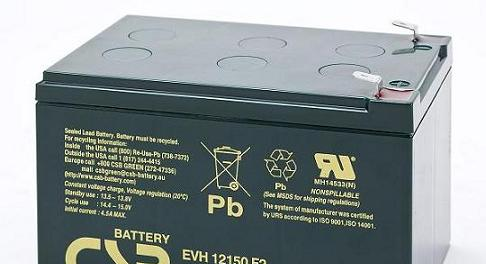

EVH12150(12V15Ah) CSB电池
