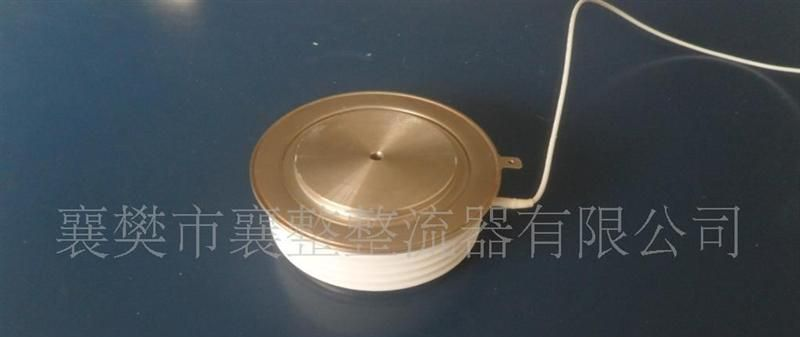

供应晶闸管KP2000A1200V
| 价 格： | 700.00 | |
| 型号/规格： | KP2000A1200V | |
| 品牌/商标： | 湖北台基半导体 |
| 型号 | VDRM/VRRM | IT(AV)@Ths | ITSM | dv/dt | di/dt | IDRM/IRRM | IGT | VGT | IH | VTM/ITM | VTO | rT | Rth(j-hs) | Tjm | 安装力 | 外型 | 备注 | |
| 10 ms | Tjm | 25 °C | 125 °C | |||||||||||||||
| V | A | °C | KA | V/μs | A/μs | mA | mA | V | mA | V/A | V | mΩ | °C/W | °C | KN | |||
| Y24KPE | 1100-1800 | 200 | 97 | 4.65 | 1000 | 500 | 16 | 30-200 | 0.8-2.0 | 20-150 | 2.20/600 | 0.85 | 1.20 | 0.095 | 125 | 3.3-5.5 | outline | |
| Y30KPE | 1100-1800 | 300 | 101 | 7.5 | 1000 | 500 | 30 | 35-250 | 0.8-2.5 | 20-200 | 2.11/1550 | 0.877 | 0.8 | 0.055 | 125 | 5.3-10 | outline | |
| Y38KPE | 1100-1800 | 500 | 101 | 11 | 1000 | 500 | 40 | 35-300 | 0.8-2.5 | 20-250 | 2.2/1500 | 0.85 | 0.42 | 0.035 | 125 | 10-20 | outline | |
| Y40KPE | 1100-1800 | 800 | 84 | 10 | 1000 | 500 | 50 | 40-300 | 0.8-3.0 | 20-250 | 2.2/2400 | 0.91 | 0.35 | 0.032 | 125 | 15-20 | outline | |
| Y45KPE | 1100-1800 | 1000 | 75 | 13 | 1000 | 500 | 60 | 40-300 | 0.8-3.0 | 20-250 | 2.2/3000 | 0.93 | 0.29 | 0.030 | 125 | 18-25 | outline | |
| Y50KPE | 1100-1800 | 1200 | 79 | 24 | 1000 | 500 | 80 | 40-300 | 0.8-3.0 | 20-300 | 2.2/3000 | 0.91 | 0.23 | 0.024 | 125 | 19-26 | outline | |
| *Y55KPE | 1100-1800 | 1600 | 67 | 26 | 1000 | 200 | 100 | 40-300 | 0.8-3.0 | 20-300 | 2.2/3000 | 0.95 | 0.18 | 0.022 | 125 | 21-30 | outline | |
| Y60KPE | 1100-1800 | 1800 | 66 | 30 | 1000 | 200 | 120 | 40-300 | 0.8-3.0 | 20-300 | 2.2/4000 | 0.98 | 0.15 | 0.020 | 125 | 21-30 | outline | |
| Y65KPE | 1100-1800 | 2000 | 72 | 35 | 1000 | 200 | 120 | 40-300 | 0.8-3.0 | 20-300 | 2.2/4000 | 0.87 | 0.14 | 0.017 | 125 | 27-34 | outline | |
| *Y70KPE | 1100-1800 | 2500 | 58 | 38 | 1000 | 250 | 160 | 40-300 | 0.8-3.0 | 20-300 | 2.2/5000 | 0.80 | 0.14 | 0.016 | 125 | 30-40 | outline | |
| Y76KPE | 1100-1800 | 3000 | 75 | 51 | 1000 | 250 | 200 | 40-300 | 0.8-3.0 | 20-300 | 2.2/5000 | 0.84 | 0.09 | 0.011 | 125 | 35-47 | outline | |
| Y30KPEA | 1100-1800 | 200 | 106 | 2.5 | 300 | 100 | 30 | 35-250 | 0.8-2.0 | 20-150 | 2.4/600 | 0.89 | 1.10 | 0.065 | 125 | 5.3-12 | outline | |
| *Y35KPEA | 1100-1800 | 400 | 98 | 5 | 300 | 100 | 40 | 35-250 | 0.8-2.5 | 20-200 | 2.4/1200 | 0.92 | 0.75 | 0.040 | 125 | 10-20 | outline | |
| Y40KPEA | 1100-1800 | 500 | 104 | 6.4 | 300 | 100 | 50 | 35-250 | 0.8-2.5 | 20-250 | 2.4/1500 | 0.90 | 0.23 | 0.035 | 125 | 15-20 | outline | |
- 所属城市：上海 上海市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 郑先生 /李小姐/李先生
- 电话：021-61032488/53082223/0577-61715911
- 传真：021-61032340/0577-61715911
- 手机：13045678202/13818511830
- QQ ：
