品牌:国产 型号:SSMA-JW同轴电缆连接器,SSMA R/A Crimp Plug/Male,SSMA Connector 应用范围:通讯 种类:射频同轴(RF) 接口类型:射频接口,RF连接器, SSMA-C-JW1.5,RF Interconnects ,软电缆连接器, 支持卡数:三合一 读卡类型:TF 形状:圆形 制作工艺:熔接 特性:防水 工作频率:高频 接触件材质:磷铜,铍铜,phosphor bronze 绝缘体材质:PTFE,Teflon 芯数:1 针数:1 线长:680（mm）

SSMA系列微小型射频同轴连接器
MINIATURE MICROAX RF COAXIAL CONNECTORS

SSMA系列产品是一种螺纹连接的微小型连接器,它具有尺寸小、频带宽、重量轻、可靠性高的特点，适用于对重量、体积有要求的高精度的小型电子设备及网络系统。
The SMA series products are as little small-scale connection device that a kind of whorl joined, it has the characteristics that the size is small, width, light, dependability are high frequently, Suitable for being small-scale electronic equipment and network system of high accuracy of the request the weight, volum

由于SMA系列连接器的广泛使用，通信技术的高速发展，需要一种体积更小，而性能优异的连接器。于是SSMA系列连接器便被应运而生了。SSMA是一种小型化的SMA，界面与SMA系列相似，它适合于更小的电缆。SSMA采用10-36 UNS螺纹连接，它的性能类似于SMA系列。由于SSMA具有比SMA更小的尺寸，它适合更小的电缆。它同样具有面板安装、印制电路板（PCB）安装等多种形式，使用它能达到更高密度的安装。

主要技术特性 TECHNICAL CHARACTERISTICS
温度范围 Temp.range -55～+155°C
振 动 Vibration 98m/s2 (加速度10g) 10～500Hz
特性阻抗 Impedance 50Ω
频率范围 Frequency Range DC～35GHz
工作电压 Working Voltage 250V max (有效值)
耐 压 Withstand Voltage 750V rms (海平面最小值)
接触电阻 Contact resistance
内导体之间 Center Contact ≤ 4 mΩ
外导体之间 Outer Contact ≤ 2.5 mΩ
绝缘电阻 Insulation resistance ≥ 1000 MΩ
电压驻波比 VSWR ≤1.07+0.10f (GHz)
耐用性 Durability(mating) ≥500次（cycles）

材料与涂覆 MATERIAL & PLATING
壳体 shell 黄铜 brass 镀硬金 gold plated
插针 contact pin 锡青铜 tin brass 镀硬金 gold plated
插孔 socket 铍青铜 beryllium 镀硬金 gold plated
绝缘体 insulator 聚四氟乙烯 PTFE
压接套 crimp ferrule 铜合金 copper alloy 镀硬金 gold plated
o型密封件o-ring sealing 硅橡胶 6146 silastic

界面尺寸 INTERFACE MATING DIMENSIONS

1.低介电常数、电压驻波比、插损、回损 2.高功率容量 3.良好的密封性、弯曲性、防水性能、屏蔽性能 4.工作可靠，连接可靠　　 5.表面镀层防腐性能好 6.结构简单、易安装维护 　
13.RF连接器设计,生产,测试,使用技术 14. 生产产品类型:　射频同轴连接器/同轴连接器／传输介质/RF通讯连接器／高频组件／天线延长线/传输线/ 转接头/转接线/射频连接线/RF连接线/射频转接线　　　　

适用技术标准 APPLICABLE STANDARD
MIL-C-39012;
CECC 22160;
IEC 60169-18.

应用范围：

1：基站

2：电缆组件

3：电子元件

4：测试仪器

5：军用/航空

6：印刷电路/局域网

7：过程控制系统

8：电信系统

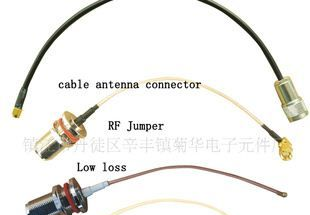

N头母头+LMR195线+SMA公头母针 1m/3m/5m/7m/9m/10m N头公头+LMR195线+SMA公头母针 1m/3m/5m/7m/9m/10m Production according to customer's requirements ( RoHS Compliant )/(Accordance with ROHS) Interface/
Meachanical mating :Screw Type /threaded coupling: the thread is 10-36 FINISH (PLATING THICKNESS IN MICRO-INCHES): 1.Body:GOLD PL.0.8μ"MIN. OVER NICKEL PL.100μ" MIN. THICK OVER COPPER STRIKE or your request



2.Contact pin: GOLD PL.0.8μ"MIN. OVER NICKEL PL.100μ" MIN. THICK OVER COPPER STRIKE or your request 3.Application(Suitable for) :
commonly terminated with coaxial cable 4.Packaging: 4 PCS/ Per nylon bag or your request 5.Material: Body: brass or your request Pin: brass or Phosphor Bronze or beryllium Bronze or your request Insulator: PTFE Or your request 6.Product name: RF Connector for RG316 Cable with SSMA MALE /right angle terminal solder type for fiexible cable
7.Match cable : SFF-50-1.5 /RG316 Coaxial Cable or any match cable of your request 8.Primary Competitive Advantages: ●LOW dielectric constant

● Heat shrink flame rating
● LOW VSWR

● LOW Insertion loss

● LOW Return loss

● Good sealing effectiveness ● Good Bend performance

● Waterproof ● shielding effectiveness

● High power capacity ● connect reliable

● Plating antisepsis and abrasion resistant

●easy install

● Packaging

● Price ● Product Features

● Product Performance

● Prompt Delivery ● Quality Approvals ● Reputation ● Service

● Green product ● Brand-name Parts ● Country of Origin

● Experienced Technical Staff ● Specifications ● OEM and ODM

9.product range:universal model for international purpose: SMA、SMB、SMC、MCX、MMCX、SSMA、SSMB、SSMC、BNC、TNC、N、CC4 series which meet the technical standards of IEC169、MIL-C-39012、DIN;RF Coaxial Connector, model L6、Q6、L8、L10、L12、L16、SL16、L9、Q9、TAC、FL10 which meet the standards of GB and SJ as well as all kinds of cable assemblies and jumpers.
Please feel free to contact me 10. Contact us : zjhwrf@zjhwrf.cn MSN:yoyuurwiuri@hotmail.com QQ:412725925 11. Production Capacity (Supply Ability):500 PCS 12. Stock :YES13. Specifications:SSMA Male is equipped with 6mm hex nut thread coupling 14. After service: Production of all products according to customer's requirements ,such as belonging to the company confirmed the issue of product quality can be returned without conditions, or customer request for a change to meet the requirements of the product. 15. Better quality products at good values :1.6/5.6 male straight crimp for RG 316 cable
1.6/5.6 male straight crimp for FLEX 3 cable
1.6/5.6 male straight crimp for FLEX 5 cable
1.6/5.6 male R/A clamp for RG6 cable
1.6/5.6 male R/A clamp for RG59 cable
1.6/5.6 male R/A clamp for FLEX 5 cable
1.6/5.6 male R/A crimp for RG 316 cable
1.6/5.6 male R/A crimp for RG FLEX 3 cable

The success of the SMA connector created a need for a smaller version for reduced packaging requirements. The SSMA series was designed to a size compatible with smaller diameter semi-rigid cable. The coupling thread is 10-36 UNS thread.

Interface dimensions conformable to the Standards:

MIL-C-39012

IEC169-18

CE CC22140

Features/Benefits

SSMA series connector provides excellent electrical performance from DC to 35GHz, but it is 70% of the SMA series in size.

SSMA series accommodates a wide range of medium to miniature sized RG coaxial cables in a small size design.

Application

1: Base Stations

2: Mil/Aero

3: Cable Assemblies

4: PC/LAN

5: Components

6: Process Controls

7: Instrumentation

8: Telecom
