供应CAN总线驱动器IC TJA1050
| 价 格： | 面议 | |
| 型号/规格： | TJA1050 | |
| 品牌/商标： | NXP |
供应TJA1050T CAN总线驱动器IC
FEATURES
· Fully compatible with the “ISO 11898” standard
· High speed (up to 1 Mbaud)
· Very low ElectroMagnetic EmissiON (EME)
· Differential receiver with wide common-mode range for
high ElectroMagnetic Immunity (EMI)
· An unpowered node does not disturb the bus lines
· Transmit Data (TXD) dominant time-out function
· Silent mode in which the transmitter is disabled
· Bus pins protected against transients in an automotive
environment
· Input levels compatible with 3.3 V and 5 V devices
· Thermally protected
· Short-circuit proof to battery and to ground
· At least 110 nodes can be connected
GENERAL DESCRIPTION
The TJA1050 is the interface between the Controller Area
Network (CAN) protocol controller and the physical bus.
The device provides differential transmit capability to the
bus and differential receive capability to the CAN
controller.
The TJA1050 is the third Philips high-speed CAN
transceiver after the PCA82C250 and the PCA82C251.
The most important differences are:
· Much lower electromagnetic emission due to optimal
matching of the output signals CANH and CANL
· Improved behaviour in case of an unpowered node
· No standby mode.
This makes the TJA1050 eminently suitable for use in
nodes that are in a power-down situation in partially
powered networks.
| 类型 ： | 收发器 |
| 驱动器/接收器数 ： | 1/1 |
| 规程 ： | CAN |
| 电源电压 ： | 4.75 V ~ 5.25 V |
| 安装类型 ： | 表面贴装 |
| 封装/外壳 ： | 8-SOIC（0.154", 3.90mm 宽） |
| 包装 ： | 带卷 (TR) |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：
供应接口RS-422双路差动驱动器和接收器75C1168
信息内容：说明 The SN65C1167, SN75C1167, SN65C1168, and SN75C1168 dual drivers and receivers are integrated circuits designed for balanced transmission lines. The devices meet TIA/EIA-422-B and ITU recommendation V.11. The SN65C1167 and SN75C1167 combine dual 3-state differential line drivers and 3-state differential line receivers, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active-low enables, respectively, which can be connected together externally to function as direction control. The SN65C1168 and SN75C1168 drivers have individual active-high enables. 特性 Meet or Exceed Standards TIA/EIA-422-B and ITU Recommendation V.11 BiCMOS Process Technology Low Supply-Current Requirements: 9 mA Max Low Pulse Skew Receiver Input Impedance . . . 17 kdzsc/18/2507/18250723.gif Typ Receiver Input Sensitivity . . . ±200 mV Receiver Common-Mode Input Voltage Range of .7 V to 7 V Operate From Single 5-V Power Supply Gli...

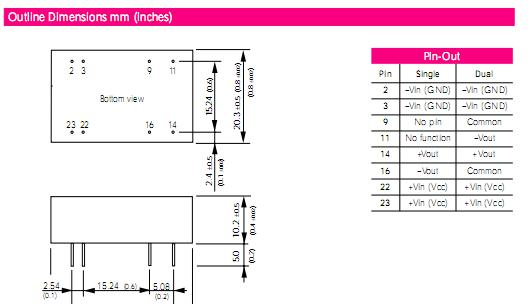

供应3W，宽电压输入DC/DC模块电源TEN3-2411
