供应10M-32M 3225 5032 温补压控晶振

价格：		面议
型号/规格：		NT3225SA
品牌/商标：		NDK
环保类别：		无铅环保型
安装方式：		贴片式
主要用途：

详细介绍
企业详情

Features

Supports low power supply voltage. (Supports DC +2.4 V±0.1 V to +3.4 V±5 %.)
Ultra-compact and light with a height, cubic volume, and weight of Max. 1.0 mm, 0.007 cm³, and 0.024g, respectively.
With an AFC (Automatic Frequency CONtrol) function.
Low power coNSumption.
A surface-mount crySTal oscillator. (Reflow soldering is possible.)
Lead-free. Meets the requirements for re-flow profiling using lead-free solder.

dzsc/18/2477/18247711.jpg

dzsc/18/2477/18247711.gif
dzsc/18/2477/18247711.gif

Specifications

Nominal frequency (MHz)	10 to 26 Please click above Frequency Range(link) to go to NDK's standard frequencies and Ordering Codes page.
Package Size (L×W×H : mm)	3.2×2.5×1.0
Supply Voltage (V)	+3.0
Load Impedance	10 kΩ//10 pF
Operating temperature Range(*1) / Storage Temperature Range (°C)	-30 to +75 / -40 to +85
Current Consumption (mA)	Max. 1.5
Output Voltage (V)	Min. 0.8 V(p-p) (DC Coupling (*2))
Frequency/Temperature Characteristics	Max. ±2.5×10^-6
Frequency/Voltage Coefficient	Max. ±0.3×10^-6 / +3.0 V ±5 %
Frequency/Load Coefficient	Max. ±0.2×10^-6/(10 kΩ//10 pF)±10 %
Long-term Frequency Stability	Max. ±1.0 ×10^-6/year
Frequency Control Range	±9.0×10^-6 to ±15.0×10^-6 / +1.5±1V (*3)

*1. Ambient temperature range within which the specified characteristics of a product can be achieved.
*2. A DC-cut capacitor is not embedded in this crystal oscillator. Connect a DC-cut capacitor (1,000 pF) to the line-out terminal of the oscillator.
*3. This is a representative specification. The specifications may change according to the frequency that you request.

When ordering our products, specify them with an “Ordering Code”.If you require a product with specifications not given above, please contact NDK sales.

* Frequency setting conditions
1.Frequencies are set at normal temperatures(+25±2°C).
2.Frequencies are set with a printed board that has a ground pattern attached to the underside of an oscillator.

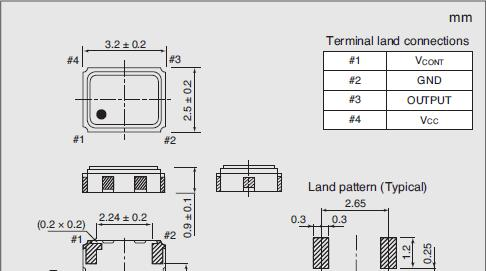

Dimensions

dzsc/18/2477/18247711.jpg
