FEATURES

● UL ,CE & CQC safety approval.
● 1 Pole and 2 Pole types are available with switching current of 16A (1Pole) and 10A (2 Pole).
● PCB terminal and Socket terminal are selectable, and for direct panel mount, flange case type is available.
● Nominal power DC 900mW & AC 1.2VA.
● Operating power DC 510mW.
● Either with or without lamp is optional for AC& DC coil.
● Low coil power consumption with high response time

UL FILE NO:E162117/E188367
TUV FILE NO:

CE DECLARATION OF CONFORMITY
CQC FILE NO: 04001009878

CONTACT RATINGS
●Contact Arrangement
	1 Form A(SPST-NO)
	1 Form B(SPST-NC)
	1 Form C(SPDT)
	2 Form C(DPDT)
●Max. Switching Power
	1 Form A(SPST-NO)	1 Form A 5000VA 600W
	1 Form B(SPST-NC)	1 Form B 4000VA 480W
	1 Form C(SPDT)	1 Form C 4000VA 480W
	2 Form C(DPDT)	2 Form C 2500VA 300W
●Max. Switching Voltage
	1 Form A(SPST-NO)	250VAC 30VDC
	1 Form B(SPST-NC)	250VAC 30VDC
	1 Form C(SPDT)	250VAC 30VDC
	2 Form C(DPDT)	250VAC 30VDC
● Max. Switching Current
	1 Form A(SPST-NO)	20 A
	1 Form B(SPST-NC)	16 A
	1 Form C(SPDT)	16 A
	2 Form C(DPDT)	10 A
●Contact Resistance
	1 Form A(SPST-NO)	<= 50 mΩ
	1 Form B(SPST-NC)	<= 50 mΩ
	1 Form C(SPDT)	<= 50 mΩ
	2 Form C(DPDT)	<= 50 mΩ
●Resistive Load
	1 Form A(SPST-NO)
	1 Form B(SPST-NC)
	1 Form C(SPDT)
	2 Form C(DPDT)
●Contact Material
	1 Form A(SPST-NO)	Ag Alloy
	1 Form B(SPST-NC)	Ag Alloy
	1 Form C(SPDT)	Ag Alloy
	2 Form C(DPDT)	Ag Alloy
●Inductive Load
	1 Form A(SPST-NO)
	1 Form B(SPST-NC)
	1 Form C(SPDT)
	2 Form C(DPDT)
●Pilot Duty Load
	1 Form A(SPST-NO)
	1 Form B(SPST-NC)
	1 Form C(SPDT)
	2 Form C(DPDT)
●Rating Load
	1 Form A(SPST-NO)	1 Form A 20A/250VAC 16A/30VDC
	1 Form B(SPST-NC)	1 Form B 16A/250VAC 16A/30VDC
	1 Form C(SPDT)	1 Form C 16A/250VAC 16A/30VDC
	2 Form C(DPDT)	2 Form C 10A/250VAC 10A/30VDC
●Tv Rating
	1 Form A(SPST-NO)
	1 Form B(SPST-NC)
	1 Form C(SPDT)
	2 Form C(DPDT)
●Remark
	1 Form A(SPST-NO)
	1 Form B(SPST-NC)
	1 Form C(SPDT)
	2 Form C(DPDT)

CHARACTERISTICS
●Electrical Life	100,000
●Mechanical Life	10,000,000
●Initial Insulation Resistance
●Contact Resistance (Initial)
●Operate Time	≤25ms
●Release Time	≤25ms
●Initial Dielectric Strength	50/60Hz 500VAC 1 min. (between open contacts) 50/60Hz 1500VAC 1 min. (between contacts and coil) 50/60Hz 1500VAC 1 min. (between contact sets)
● Vibration Resistance	Malfunction: 10 to 55Hz at Double Amplitude of 1.5mm Destructive: 10 to 55Hz at Double Amplitude of 1.5mm
●Shock Resistance	Malfunction: 10G (11ms) / Destructive: 100G (6ms)
●Ambient Temperature
●Relative Humidity
●Unit Weight	Approx. 35g
●Remark

ORDERING INFORMATION

951	-	1C	-	12	D	P	M	L	-	G	-	F
1		2		3	4	5	6	7		8		9

1	Model Number 951
2	Contact Arrangement 1A = 1 Form A (SPST-NO) 1B = 1 Form B (SPST-NC) 1C = 1 Form C (SPDT) 2C = 2 Form C (DPDT)
3	Coil Voltage DC:6~100V AC:12~270V
4	Coil Type D: DC A: AC
5	Terminal Type Nil = Socket Terminal P = P.C.B. Terminal
6	Cover Type Nil = General Type M = Flange Top Type S = Special Type E = Special Flange Top Type
7	Optional Nil = General Type L = With Lamp and Diode (DC Coil Type Only) N = With Lamp B = With Push Button T = With Lamp and Push Button K = With Lamp and Diode and Push Button (DC Coil Type Only)
8	Contact Material Nil = General Type G = Contact with Gold Plating
9	Type of Insulation Nil = ClassA F = Class F

COIL RATINGS (at 20℃)

COIL TYPE	Coil Nominal Voltage (V)	Coil Resistance (Ω+-10%)	Pick-Up Voltage (V) <=	Drop-Out Voltage (V) >=	Nominal Current (mA)
AC	12	46	9	3.6
	24	180	18	7.2
	110	3750	82.5	33
	120	4430	90	36
	220	12950	165	66
	240	18790	180	72
	270	24150	202.5	81
DC Standard Coils	6	40	4.5	0.6	150
	12	160	9	1.2	75
	24	650	18	2.4	37
	48	2600	36	4.8	19
	100	11000	75	10	9

* Max Continuous Voltage at 20℃: 130% of Coil Nominal Voltage.

结构：

Referential Data

深圳市福田区广辉电经营部

公司信息未核实

所属城市：广东深圳
[联系时请说明来自维库仪器仪表网]
联系人： 陈树辉
电话：0755-82534577/13076512089
传真：0755-82534577
手机：13686868407
QQ ：

公司相关产品

供应3 V, SILICON MMIC频率转换器UPC2758T

信息内容：

3 V, SILICON MMICFREQUENCY CONVERTER (3 V, SILICON MMIC频率转换器UPC2758T) FEATURES: • WIDE BAND OPERATION UP TO 2.5 GHz• LOW VOLTAGE OPERATION: 2.7 V Minimum• LOW POWER CONSUMPTION: 15 mW (UPC2757T)• POWER SAVE FUNCTION• SUPER SMALL PACKAGE• TAPE AND REEL PACKAGING OPTION AVAILABLE DESCRIPTION: The UPC2757T and UPC2758T are L-Band Frequency Con-verters manufactured using the NESAT III MMIC process.These products consist of a double balanced mixer, IF ampli-fier and LO buffer amplifier. The UPC2757T is designed forlow power consumption while the UPC2758T is designed forlow distortion. Both devices operate on a 3 volt supply voltagemaking them ideal for portable hand held cellular, GPS, PCNand wireless LAN applications.NEC's stringent quality assurance and test procedures en-sure the highest reliability and performance. dzsc/18/2470/18247026.jpg 脚定义： dzsc/18/2470/18247026.jpg dzsc/18/2470/18247026.jpg

详细内容>>

供应OB6563临界模式功率因子校正器(PFC)电源IC

信息内容：

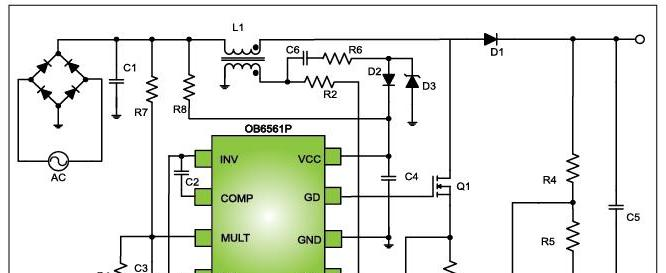

高性能功率因子校正器(PFC) 简介: OB6561P/OB6563 是高性能的临界模式(Transition Mode)功率因子校正器(PFC)系列。该系列产品集成了多项昂宝专利技术，对传统的临界模式控制进行了优化设计，使系统易于实现接近于1的功率因子和极低的谐波失真。应用范围: 1、家用电脑电源2、电视机电源3、电源适配器4、照明电源特点: 1、临界导通模式，内置模拟乘法器2、专利的谐波优化技术实现了极低的谐波失真(<10% @264VAC)3、系统反馈环路开路保护(Open loop protection)4、专利技术保证无异音工作5、电流检测电阻开路保护6、间歇工作模式实现轻载高效率7、可外接信号进行使能控制8、三重过压保护9、电流检测回路内置双重噪声抑制功能，无需外加RC低通滤波器10、逐周期峰值电流限制11、更低的动态OVP检测电流(OB6563)，与PWM结合使用时在150W系统中实现超低(<0.4W)的待机功耗12、目前提供DIP8、SOP8两种封装形式，符合RoHS标准 High Performance PFC Controller OB6561P/OB6563 is a high performance transition mode(TM) Power Factor Correction(PFC) control IC. Designed with On-Bright patented proprietary technology, OB6561P/OB6563 optimi...
