供应防水按钮开关
| 价 格： | 100.00 |
品牌:ITW 型号:48SERIES 工作电压:250（V） 工作电流:12（A） 产品认证:ROHS
dzsc/18/2423/18242370.jpg
KEY FEATURES:SERIES 48 SOLID STATE
• 1,000,000 cycles momentary
• Momentary and maintained action
• Hall-Effect technology
• Panel sealed to IP67
• Square and round versions
available
• Variety of colorsMECHANICAL / ELECTRICAL
CHARACTERISTICS:
Circuit:
SPST-NO
Button travel (nominal):
.09/2.3 mm
Life (mechanical):
1,000,000 cycles max
(momentary)
100,000 cycles max
(maintained)
Operating force (nominal):
3N/306g
Contact bounce (nominal:
1 ms
Panel thickness:
.02 – .12 / 1.5-3mm
Temperature index:
-40°F to + 185°F
Supply voltage:
4.2V to 24V, 26.5 Max.
Supply current:
B<Brp, Vcc=12V: 3mA Typ.
To 8mA Max.
B>Bop, Vcc=12V: 4mA Typ.
To 8mA Max.
Output current:
30 to 50 mA
Reverse battery voltage:
-30V Max.
Reverse battery current:
-5V Max.
Torque (max):
10 inch poundsdzsc/18/2423/18242370.jpg
dzsc/18/2423/18242370.jpg
- 所属城市：北京 北京市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 倪晓秋
- 电话：010-62612711
- 传真：010-62612711
- 手机：
- QQ ：
供应ZIPPY微动开关*VMN

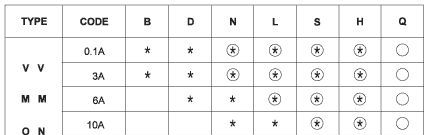

信息内容：品牌:Zippy 型号:VMN 类型:普通型台湾ZIPPY微动开关VMN Series dzsc/18/2440/18244068.jpgVMN/VMO-P1 0.1A, 125/250VACVMN/VMO-03 3A, 125/250VACVMN/VMO-06 6A, 125/250VACVMN/VMO-10 10A, 125/250VACVMN/VMO-15 15A, 125/250VACVMO-16 16(4)A, 125/250VACDimension：Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.dzsc/18/2440/18244068.jpgFeatures：Customer designs, Rock wipe contact action, Integral hinge actuator, Long life coil spring mechanism, Large over travelSpecifications：Operating Frequency (mechanical).....300 operations / mimOperating Frequency (electrical).....10 ~ 30 operations / mimContact Resistance (initial).....30m,100m Ω (Max.)Insulation Resistance (at 500VDC).....100M Ω (Min.)Dielectric Strength (50-60Hz).....AC 1,000V RMSStorage Temperature.....-25 ~ 85(120optionl) ℃Storage Humidity.....85% RH (Max.)Service Life (mechanical).....5,000,000~10,000,000 operationsService Life (electrical).....6,000 ~100,000 operationsApplic...
供应ZIPPY微动开关VK

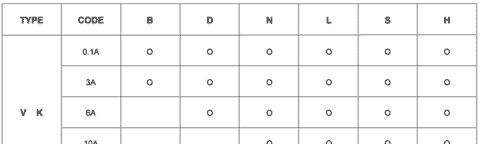

信息内容：品牌:台湾 型号:VK 类型:普通型台湾ZIPPY微动开关VK Series dzsc/18/2440/18244092.jpg Ratings：VK-P1 0.1A 125/250VACVK-03 3A 125/250VACVK-06 6A 125/250VACVK-10 10A 125/250VACVK-15 15A 125/250VACDimension：Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.dzsc/18/2440/18244092.jpgFeatures：Customer designs, Rock wipe contact action, Integral hinge actuator, Long life coil spring mechanism, Large over travelSpecifications：Operating Frequency (mechanical).....300 operations / mimOperating Frequency (electrical).....10 ~ 30 operations / mimContact Resistance (initial).....30m,100m Ω (Max.)Insulation Resistance (at 500VDC).....100M Ω (Min.)Dielectric Strength (50-60Hz).....AC 1,000V RMSStorage Temperature.....-25 ~ 85(120optionl) ℃Storage Humidity.....85% RH (Max.)Service Life (mechanical).....5,000,000~10,000,000 operationsService Life (electrical).....6,000 ~100,000 operationsApplication：Home appliance , etc.Contact Configuration：...
