供应60W防水LED电源
| 价 格： | 面议 | |
| 型号/规格： | 60W防水LED电源 | |
| 品牌/商标： | JH |
详细介绍:
| Model | JH-FS8602 | ||||||
| DC Output (O/P) |
DC voltage | 12V | |||||
| Rated current | 5A | ||||||
| Current range | 0~5A | ||||||
| Ripple & Noise (max) | 120mVp-p | ||||||
| Rated power | 60W | ||||||
| Voltage tolerance | ±5.0% | ||||||
| Setup, rising time | 500ms, 50ms at full load | ||||||
| Hold up time | >5ms at full load | ||||||
| Input (I/P) |
Rated Voltage range | 90~264VAC | |||||
| 100-240Vac | |||||||
| Frequency range | 47~63Hz | ||||||
| Efficiency (average) | >84% (min) | ||||||
| AC current | 1.3A(max) | ||||||
| Leakage current | < 0,25 mA at 250 V | ||||||
| Inrush current | < 60 A at 230 V | ||||||
| Protection | Short circuit type | Hiccup mode , but can\'t damage for permanent short circiut. | |||||
| Over voltage type | 115~150% rated voltage and Shut off O/P voltage, re-power on to recover | ||||||
| Over load type | 115~200% rated output power and Hiccup model, no damage, automatic recover after removing over load condition | ||||||
| Environment | Working temp | 0 ~+40℃ | |||||
| Working humidity | 20 ~90% RH non-condensing | ||||||
| Storage temp & humidity | -20~+85℃, 10~95% RH | ||||||
| Vibration | EN 61131-2 | ||||||
| Safty & EMC | Standards | design refer to EN60950 | |||||
| Withstand voltage | I/P-O/P: 3KVAC, 5mA, 60S ( 2pin); I/P-O/P: 1.5KVAC, 5mA, 60S (3pin); | ||||||
| Isolation resistance | I/P-O/P: 100M ohms/500VDC | ||||||
| EMC | EN55022 Class B | ||||||
| Others | Certification | N/A | |||||
| MTBF | 300 Khrs, Mil-HDBK-217F(25℃) | ||||||
| Connection | 2pin plug or 3pin; H03VV-F 0.75mm²x2 wires | ||||||
| Dimension | 128*68*45mm (L*W*H) | ||||||
| Weight | 650g | ||||||
| IP rating | IP67 | ||||||
| RoHS compliance | Yes | ||||||
| Warranty Period | 2 year | ||||||
| Note: | 1. All parameters NOT specially mentioned are measured at 230VAC input and rated load and 25℃ of ambient temperature. | ||||||
| 2. Ripple & Noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||||||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王美月
- 电话：0755-61665296/61665297
- 传真：0755-61665296-809
- 手机：13798387298
- QQ ：
供应30W LED防水电源
信息内容：详细介绍: Model JH-FS8302 DC Output(O/P) DC voltage 12V Rated current 2.5A Current range 0~2.5A Ripple & Noise (max) 120mVp-p Rated power 30W Voltage tolerance ±5.0% Setup, rising time 500ms, 50ms at full load Hold up time >5ms at full load Input(I/P) Rated Voltage range 90~264VAC 100-240Vac Frequency range 47~63Hz Efficiency (average) >84% (min) AC current .8A(max) Leakage current < 0,25 mA at 250 V Inrush current < 60 A at 230 V Protection Short circuit type Hiccup mode , but can\'t damage for permanent short circiut. Over voltage type 115~150% rated voltage and Shut off O/P voltage, re-power on to recover Over load type 115~200% rated output power and Hiccup model, no damage, automatic recover after removing over load condition Environment Working temp 0 ~+40℃ Working humidity 20 ~90% RH non-condensing Storage temp & humidi...

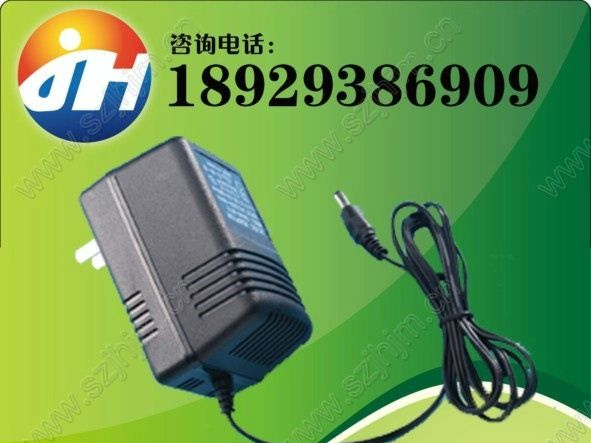

12v200ma铁芯变压器，游戏机电子火牛，适配器火牛，低频变压器
信息内容：供应各种规格 AC/DC插墙式,低频,单相变压器 深圳市佳宏精密技术有限公司是一家从事各类变压器、稳压电源、开关电源、充电器等电子产品的开发与生产，公司拥有先进的加工设备及雄厚的技术力量。本公司的产品符合UL/CUL(美国、加拿大）、GS/CE（德国/欧洲）、PSE（日本）、CCC（长城）、SAA（澳大利亚）等国家的安规要求。所生产的ROHS认证产品保证其产品符合欧盟ROHS指令.公司为一般纳税人,可开增票,具备多种安规认证,质优品正。欢迎致电0755-61665296垂询！本目录中的说明及参数、图片仅供参考，以实物或双方约定为准."
