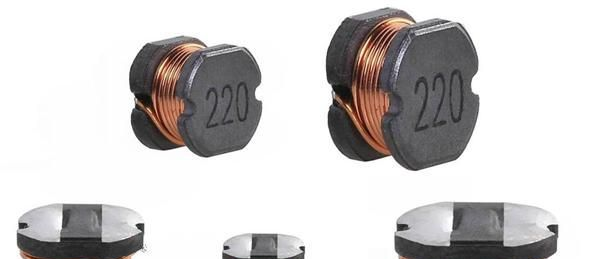

供应手摇电筒可视对讲用的SMD功率电感
| 价 格： | 0.22 | |
| 型号/规格： | DH4532-100 | |
| 品牌/商标： | 国产 | |
| 环保类别： | 无铅环保型 | |
| 主要用途： | | |
| 额定电流： | A | |
| 额定电压： | V | |
| 外形尺寸： | mm |
| 品 名 | 电感量 | 电感量 | 直流电阻 | 额定电流 |
| L（μH） | 公差 | DCR（Ω）max | RDC（A）max | |
| DH4532 – 1R0M | 1 | ±20 % | 0.033 | 3.8 |
| DH4532 – 1R4M | 1.4 | ±20 % | 0.038 | 3.3 |
| DH4532 – 1R8M | 1.8 | ±20 % | 0.042 | 2.91 |
| DH4532 – 2R2M | 2.2 | ±20 % | 0.047 | 2.6 |
| DH4532 – 2R7M | 2.7 | ±20 % | 0.052 | 2.43 |
| DH4532 – 3R3M | 3.3 | ±20 % | 0.058 | 2.15 |
| DH4532 – 3R9M | 3.9 | ±20 % | 0.076 | 1.98 |
| DH4532 – 4R7M | 4.7 | ±20 % | 0.094 | 1.7 |
| DH4532 – 5R6M | 5.6 | ±20 % | 0.101 | 1.6 |
| DH4532 – 6R8M | 6.8 | ±20 % | 0.117 | 1.41 |
| DH4532 – 8R2M | 8.2 | ±20 % | 0.132 | 1.26 |
| DH4532 – 100M | 10 | ±20 % | 0.182 | 1.15 |
| DH4532 – 120M | 12 | ±20 % | 0.21 | 1.05 |
| DH4532 – 150M | 15 | ±20 % | 0.235 | 0.92 |
| DH4532 – 180M | 18 | ±20 % | 0.338 | 0.84 |
| DH4532 – 220M | 22 | ±20 % | 0.378 | 0.76 |
| DH4532 – 270M | 27 | ±20 % | 0.522 | 0.71 |
| DH4532 – 330K | 33 | ±10 % | 0.54 | 0.64 |
| DH4532 – 390K | 39 | ±10 % | 0.587 | 0.59 |
| DH4532 – 470K | 47 | ±10 % | 0.844 | 0.54 |
| DH4532 – 560K | 56 | ±10 % | 0.937 | 0.5 |
| DH4532 – 680K | 68 | ±10 % | 1.117 | 0.46 |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘鹏程
- 电话：0755-27971625
- 传真：0755-27971473
- 手机：18948352805
- QQ ：
车载电源,导航电源用的贴片功率电感DHD2D11-2R2
信息内容：品名 电感量 直流电阻 额定电流 L(uH) DCR(Ω)max RDC(A)max DHD2D11 – 1R0N 1 0.068 0.9 DHD2D11 – 2R2 N 2.2 0.098 0.78 DHD2D11 – 3R3N 3.3 0.132 0.6 DHD2D11 – 4R7N 4.7 0.29 0.5 DHD2D11 – 6R8N 6.8 0.36 0.44 DHD2D11 – 100N 10 0.4 0.35 DHD2D11 – 150N 15 0.6 0.3 DHD2D11 – 220N 22 1.11 0.2
LED电源用电感,SMD贴片功率电感DH5820-22UH
信息内容：SMD贴片电感器DH5820-22UH特性及应用特征：耐大电流，低直流电阻，圆形；直径：3.5~10mm，高度：1.0mm~6.0mm。主要适用范围：笔记本电脑、数码相机、手机、便携式DVD、LED光电产品、车载电脑/DVD、GPS导航产品、电脑显卡/板卡、PDA掌上电脑、精密仪器、DC/DC电源模块、DC/AC逆变器、液晶电视等精密电子产品的应用与使用 DH5820-220M规格书： PART NO.L (µH)L TESTDCR (Ω)IDC (A)INDUCTANCEFREQUENCYMAXMAXDH5820-2R2M2.27.96 MHZ0.0392.16DH5820-2R7M2.77.96 MHZ0.0442.08DH5820-3R3M3.37.96 MHZ0.0491.90DH5820-3R9M3.97.96 MHZ0.0561.84DH5820-4R7M4.77.96 MHZ0.0621.60DH5820-5R6M5.67.96 MHZ0.0781.44DH5820-6R8M6.87.96 MHZ0.0911.36DH5820-8R2M8.27.96 MHZ0.1031.12DH5820-100K102.52 MHZ0.1331.04DH5820-120K122.52 MHZ0.1480.96DH5820-150K152.52 MHZ0.1660.88DH5820-180K182.52 MHZ0.2130.77DH5820-220K222.52 MHZ0.2480.73DH5820-270K272.52 MHZ0.3280.64DH5820-330K332.52 MHZ0.3780.58DH5820-390K392.52 MHZ0.4380.54DH5820-470K472.52 MHZ0.5460.49DH5820-560K562.52 MHZ0.6210.45DH5820-680K682.52 MHZ0.7150.41DH5820-820K822.52 MHZ1.0000....
