供应空调压力传感器(图)
| 价 格： | 面议 |
品牌:SSI 型号:P51-50BARS-P-HD-20MA 类型:扩散硅压力变送器 测量介质:液体 测量范围:0-50000（kPa） 精度等级:0.5% 输出信号:4-20（mA） 防爆等级:IP 电源电压:8-30（V） 接口尺寸:20（mm）
Product Description

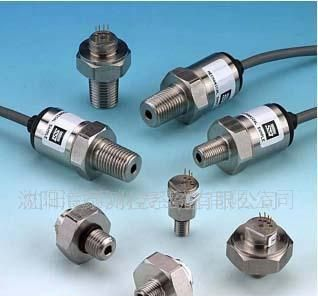

SSI Technologies Inc., offers the MediaSensor™ Series
HS sealed gage pressure sensors targeted at industrial
and commercial applications where low pressure, cost,
compact size, robust packaging, chemical compatibility and
performance are critical.
These MediaSensor™ P51 Series HS bulk micro-machined,
sealed gage pressure sensors are designed to work at low
pressure ranges (1000 psi to 5000 psi) with superior
accuracy.
The MediaSensor™ P51 Series HS pressure sensor are
cost competitive, compact, have robust packaging with a
wide variety of fittings that work in both harsh and benign
media. They are ideal for a variety of pressure
measurement applications in the automotive, industrial and
commercial industries. Four different electrical signal
outputs are available for use by computers, digital panel
meters, PLCs, chart recorders and other devices that can
display, record or change the pressure in a closed loop
system.
Product Features
? Pressure Ranges:
o 1000 psig ( 6.9 MPa)
o 1500 psig ( 10.3 MPa)
o 2000 psig ( 13.8 MPa)
o 3000 psig ( 20.7 MPa)
o 5000 psig (34.5 MPa)
? Superb Accuracy:
o ±1.0% overall full scale < 3000 at room temperature
o ±1.5% overall full scale > 3000 at room temperature
o includes Repeatability, Hysteresis and Linearity
? Maximum Flexibility: Custom ASIC provides
signal conditioning for calibration and temperature
compensation
? Compact, Robust Package: All laser-welded
stainless steel design for optimal media isolation
? Electrical Connectors: Packard, Deutsch,
MD-DIN, M12, Integral Harness
? Electronics:
o 0.5 – 4.5 Volt output (with 5V input)
o 0.5 – 4.5 Volt output with overvoltage
protection (with 5V input)
o 1 – 5 Volt Output (with 8 – 30V input)
o 4-20 mA (with 8 – 30V input)
- 所属城市：辽宁 沈阳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 杨艳丽
- 电话：024-83601023
- 传真：024-83601023
- 手机：
- QQ ：
美国进口压力传感器 美国SSI传感器 SSI压力传感器
信息内容：dzsc/19/1147/19114700.jpg美国SSI压力传感器P31（温补型与无温补型）：产品简介：美国SSI科技股份有限公司，作为汽车电子传感器领域杰出的OEM产品供应商，已向全球用户提供过亿支的传感器产品。目前，面向成本、规格及性能要求更加苛刻，竞争更加激烈的工业和商业应用领域正式推出其具有性价比的压力传感器产品。该产品采用半导体传感器，经不锈钢隔离充油封装，体积小巧，精度高，稳定性好，量程从－100KPa至40MPa不等，可直接用于腐蚀及非腐蚀性介质的表压、密封表压、绝压的测量，可在－40～105℃内稳定工作，广泛应用于工业、商业、汽车领域的产品生产配套。主要特点：l 结构坚固－不锈钢充油封装l 激光焊接l 可按用户标准生产l 结构小巧，性价比高用户定制接口尺寸规格
