供应DL0165R绿色(FPSTM)开关电源IC
| 价 格： | 面议 | |
| 型号/规格： | FSDL0165RN,DL0165R | |
| 品牌/商标： | FSC |
FSDL0165RN
Green Mode Fairchild Power Switch (FPSTM)
Features
• Internal Avalanche Rugged Sense FET
• Consumes only 0.65W at 240VAC & 0.3W load with
Advanced Burst-Mode Operation
• Frequency Modulation for EMI Reduction
• Precision Fixed Operating Frequency
• Internal Start-up Circuit
• Pulse-by-Pulse Current Limiting
• Abnormal Over Current Protection (AOCP)
• Over Voltage Protection (OVP)
• Over Load Protection (OLP)
• Internal Thermal Shutdown Function (TSD)
• Auto-Restart Mode
• Under Voltage Lockout (UVLO)
• Low Operating Current (3mA)
• Adjustable Peak Current Limit
• Built-in Soft Start
Applications
• SMPS for VCR, SVR, STB, DVD & DVCD Player
• SMPS for Printer, Facsimile & Scanner
• Adapter for Camcorder
Related Application Notes
• AN-4137, 4141, 4147(Flyback) / AN-4134(Forward)
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：
供应大功率继电器NRP13-C24DH
信息内容：CLASSIFICATION DATA 型号 NRP13 外形尺寸长 X 宽 X 高 29.5 X 13 X 20.6 特性 1. Creepage distance:8.0mm Min 2. Au-clad contact available 3. Transparent sealed available 4. Class B/F available 触点参数 触点形式 2H,2Z 触点材料 Silver Alloy 转换电流 8A 最小负载 100mA 5VDC 转换电压 250VAC/30VDC 转换功率 1250VA/240W 触点负载 5A 240VAC5A 30VDC 接触电阻 100 线圈参数 线圈电压范围 3-48VDC 线圈功耗 240/540/720mW 一般参数 绝缘参数 100 介质耐压 1000VAC5000VAC 环境温度 -40to+85℃ 吸合、释放时间 20ms/10ms 机械寿命 10,000,000 电气寿命 100,000 脚位形式 PCB 安规 UL,cUL,CQC,TÜV 同类产品 SCHRACK:RTFUJITSU:FTR-H1-F1ZETTLER:AZ742/763/764FEME-M25
供应10A小型大功率继电器FT-H1AA024V

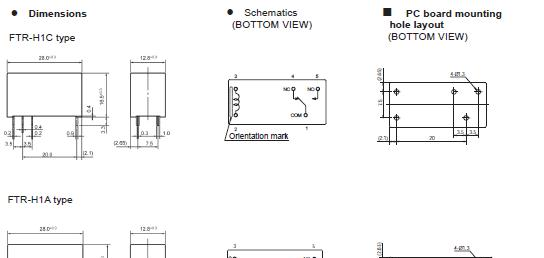

信息内容：POWER RELAY1 POLE - 10A Low Profile Type 10A小型大功率继电器FTR-H1/29.0*12.7*15.7（mm） 特性 FEATURES:l Working class: B (for IMQ)/ C (for VDE)l Type of service: continuous dutyl Low profile (height 16.5 mm)l 1 form A/ 1 form C 10 A, TV-5 rating availablel Transparency cover type availablel UL class B (130°C) wire classl High insulation in small packageInsulation distance : 8 mm (between coil and contacts)Dielectric strength : 5,000 VACSurge strength :10,000 Vl Plastic materials - UL94 flame class V-0UL CTI level class 2l Plastic sealed relay, RT IIIl Pin configuration compatible to VS / FBR610 seriesl UL, CSA, BSI, VDE, SEMKO recognizedl Conforms to FIMKO, DEMKOl RoHS compliantPlease see page 6 for more information 型号说明： dzsc/18/2314/18231470.jpg 主要参数： dzsc/18/2314/18231470.jpg 结构： dzsc/18/2314/18231470.jpg
