供应汽车继电器/NRP18-C12DS
| 价 格： | 面议 | |
| 型号/规格： | NRP18-C12DS-H | |
| 品牌/商标： | NCR |
Contact
Form
1A,1B,1C
Load (Resistive Leakage)
5A/240VAC 28VDC
Contact resistance (initial)
≤100mΩ
Material
Silver alloy
Electric life
≥105
Machine life (300 times/min)
≥107
Pick-up voltage (25℃)
DC:≤75%×rated voltage
Release voltage (25℃)
DC:≥10%×rated voltage
Maximum voltage (25℃)
110%×rated voltage
Specifications of coils
3-48VDC (Customizable Voltage )
Coil power
DC
0.6W
Pick-up time (rated voltage)
≤10ms
Release time (rated voltage)
≤5ms
Initial withstand
Between contacts
750VAC/1min (leakage current:1mA)
Between contact and coil
1000VAC/1min (leakage current:1mA)
Insulation resistance
≥100mΩ(500VDC)
Ambient temperature
-55～70℃
Ambient humidity
35%-80%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
PCB
Packing
Inner box
25 relays each plastic pipe
Outer case
3000 relays each case
Dimension of outer case
420×235×229MM
Weight
Approx.5.7g each relay
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：
供应整流二极管1N4007 M7贴片封装DO-214AC(SMA)
信息内容：全新 整流二极管 型号 DeviceMarking 封装Package 可重复峰值反向电压MaximumRepetitivePeakReverseVoltage 均方根电压MaximumRMSVoltage 直流阻断电压MaximumDCBlockingVoltage 正向平均整流电流MaximumAverageForwardRectifiedCurrent 拆零价(RMB/颗) 说明 1N4007 M7 DO-214AC(SMA) 1000V 700V 1000V 1A 0.1 50颗起卖

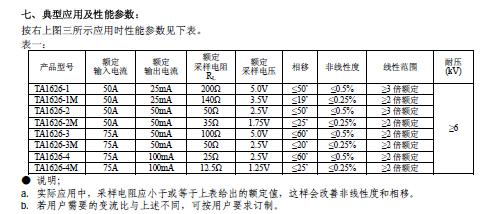

供应TA1626系列立式穿芯小型精密交流电流互感器
信息内容：简介： dzsc/18/2290/18229053.jpg dzsc/18/2290/18229053.jpg
