供应600V,9A,50W,1.2Ω N-CH MOS管K2645
| 价 格： | 面议 | |
| 型号/规格： | 2SK2645-01MR,2SK2645,K2645 | |
| 品牌/商标： | FUJI | |
| 封装形式： | TO-220F | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 直插式 | |
| 包装方式： | 散装 | |
| 功率特征： | |
供应600V,9A,50W,1.2Ω N-CH MOS管K2645
Features(FAP-IIS Series)
- High Speed Switching
- Low On-Resistance
- No Secondary Breakdown
- Low Driving Power
- High Voltage
- VGS = ± 30V Guarantee
- Repetitive Avalanche Rated
> Applications
- Switching Regulators
- UPS
- DC-DC converters
- General Purpose Power Amplifier
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：
供应STR-A6059H开关电源PWM控制器电源IC
信息内容：特点： Current-Mode Type PWM Control Built-in Random Switching FunctionThe function reduces the EMI noise and enables a simplified (low-cost) EMI filter,by the slight- random-change of PMW frequency fOSC. Auto-Standby Function: The burst-oscillation enables the low standby power. Input Power PIN < 25mW at no load Built-in Startup Circuit, enabling low power consumption Brown-In / Brown-Out FunctionThe function enables the oscillation start/stop by externally rated input voltage and makes protections at low inputvoltage. Overcurrent Protection (OCP) with Built-in Input Compensation Circuit:The protection has less AC input voltage dependency. Overload Protection (OLP) with Built-in Delay Timer High Speed Latch Release FunctionThe function releases the latch immediately at AC supply OFF, after the latch protection operation. Bias-Assist Function, reducing Operating VCC voltage dropThe function improves the startup operation and makes a low VCC capacitor applicable. Lead...
供应小型精密电流互感器ZMCT103C

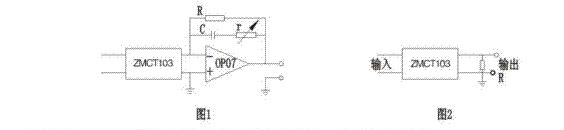

信息内容：产品详情： 型号：ZMCT103C、ZMCT103D 额定输入电流：5A、5A 额定输出电流：5mA、2.5mA 变比：1000:1，2000:1 相位差（额定输入时）：≤30′、≤20′ 线性范围：0~10A、0~10A 线性度：0.2﹪、0.1﹪ 精度等级：0.2级、0.2级 隔离耐压：3000V、3000V 用途：测量、测量 (家用电器与电动工具用测控互感器) 密封材料：环氧树脂 安装方式：印制板安装 工作温度：-40~+70℃ 结构参数： dzsc/18/2273/18227342.jpg 技术参数： dzsc/18/2273/18227342.jpg 使用说明： dzsc/18/2273/18227342.jpg
