供应电源管理IC/高低端驱动器/IR2301S
| 价 格： | 面议 | |
| 型号/规格： | IR2301S | |
| 品牌/商标： | IR |
| 配置 ： | 高端和低端，独立 |
| 输入类型 ： | 非反相 |
| 延迟时间 ： | 220ns |
| 电流 - 峰 ： | 200mA |
| 配置数 ： | 1 |
| 输出数 ： | 2 |
| 高端电压 - （自引导启动） ： | 600V |
| 电源电压 ： | 5 V ~ 20 V |
| 工作温度 ： | -40°C ~ 150°C |
| 描述 ： |
HIGH AND LOW SIDE DRIVER /高低端驱动器 |
| 封装/外壳 ： | 8-SOIC（0.154", 3.90mm 宽） |
| 包装 ： | 管件 |
• Floating channel designed for bootstrap operation
Fully operational to +600V
Tolerant to negative transient voltage dV/dt immune
• Gate drive supply range from 5 to 20V
• Undervoltage lockout for both channels
• 3.3V, 5V and 15V input logic compatible
• Matched propagation delay for both channels
• Logic and power ground +/- 5V offset.
• Lower di/dt gate driver for better noise immunity
• Outputs in phase with inputs
• Also available LEAD-FREE (PbF)
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：

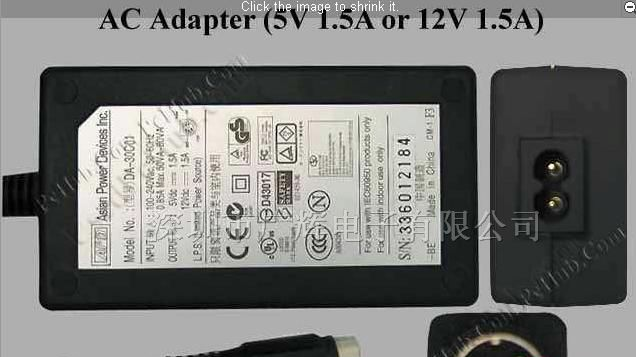

供应5Vdc/1.5A,12Vdc/1.5A双路五针电源适配器DA-30C01
信息内容：DA-30C01 电源适配器-5～12V Asian Power Devices Inc. Model No.: DA-30C01 INPUT: 100-240Vac, 50-60Hz 0.85A Max,. 50VA-80VA OUTPUT: 5Vdc 1.5A 12Vdc 1.5A Connector: 5-pin DIN Dimensions: 104 x 58 x 35 mm

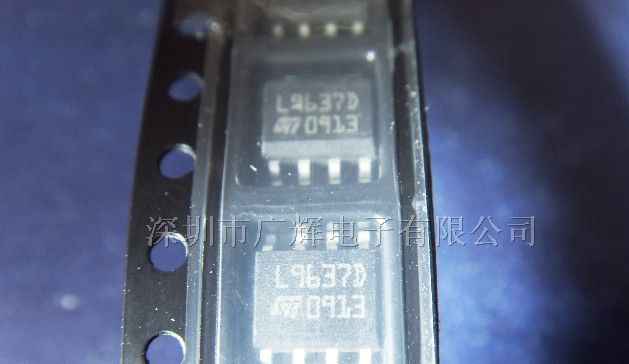

供应L9637D单片总线驱动器OBD 通信IC
信息内容：供应L9637D单片总线驱动器OBD 通信IC Monolithic bus driver with ISO 9141 interface(ISO 9141单片机接口) Features■ Operating power supply voltage range4.5 V ≤ VS ≤ 36 V (40 V for transients)■ Reverse supply (battery) protected down toVS ≥ -24 V■ Standby mode with very low currentconsumption ISSB ≤ 1 mA @ VCC ≤ 0.5 V■ Low quiescent current in off conditionISOFF = 120 μA■ TTL compatible TX input■ Bidirectional K-I/O pin with supply voltagedependent input threshold■ Overtemperature shut down function Selectiveto K-I/O pin■ Wide input and output voltage range-24 V ≤ VK ≤ VS■ K output current limitation, typ. IK = 60 mA■ Defined OFF output status in undervoltagecondition and VS or GND interruption■ Controlled output slope for low EMI ■ High input impedance for open VS or GNDconnection■ Defined output ON status of LO or RX for openLI or K inputs■ Defined K output OFF for TX input open■ Integrated pull up resistors for TX, RX and LO■ EMI robustness optimized OBD...
