供应韩国KET汽车连接器MG620046

价格：

面议

详细介绍
企业详情

品牌:KET 型号:MG620046、MG610041R、MG620040、MG620040R、MG630675、MG633062、MG610043、MG630676 应用范围:汽车种类:胶壳(housing) 接口类型:AC/DC 支持卡数:单卡读卡类型:250 HOUSING 形状:矩形制作工艺:250 HOUSING 特性:250 HOUSING 接触件材质:250 HOUSING 绝缘体材质:250 HOUSING 芯数:250 HOUSING 针数:250 HOUSING 线长:250 HOUSING（mm）

Features	6.0mm(0.250inch) TAB size, non-waterproof connector for the power control part equipped in automobiles Improved Housing Lance type is stabler than Terminal Lance type
Application	* Wire To Wire Type
Contact Material	* M : Brass , F : Brass
Contact Plating	* M : Pre-Tin / (Tin) , F : Pre-Tin / (Tin)
Connector Material	* NYLON66
Applicable Wire	* AVS, AVSS , CAVS 0.3~3.0mm² (AWG # 22 - # 12)
Terminal Locking Force	* Below 10.0 Kg.f
Contact Resistance	* Over DC 500 V 100 MΩ
Dielectric Strength	* AC 1000 V (min)
Temperature Range	* -40 ~ 120 °C
Current Rating	* 20 A
Components	*
Waterproof	* Non-waterproof Connector

MG620046 MG620046、MG610041R、MG620040、MG620040R、MG630675、MG633062、MG610043、MG630676

§Connector/Automotive/Wire to Wire connector

部门
中分类小分类
检索选择检索词

(click below image for large picture.) ?Previous|List|Next?

250 Series Connector

Features	6.0mm(0.250inch) TAB size, non-waterproof connector for the power control part equipped in automobiles Improved Housing Lance type is stabler than Terminal Lance type
Application	* Wire To Wire Type
Contact Material	* M : Brass , F : Brass
Contact Plating	* M : Pre-Tin / (Tin) , F : Pre-Tin / (Tin)
Connector Material	* NYLON66
Applicable Wire	* AVS, AVSS , CAVS 0.3~3.0mm² (AWG # 22 - # 12)
Terminal Locking Force	* Below 10.0 Kg.f
Contact Resistance	* Over DC 500 V 100 MΩ
Dielectric Strength	* AC 1000 V (min)
Temperature Range	* -40 ~ 120 °C
Current Rating	* 20 A
Components	*
Waterproof	* Non-waterproof Connector

青岛华臣电子有限公司

公司信息未核实

所属城市：山东青岛
[联系时请说明来自维库仪器仪表网]
联系人： 孙美英
电话：532-86901766
传真：532-86901766
手机：
QQ ：

公司相关产品

供应韩国汽车连接器 KET ST730924-3

信息内容：

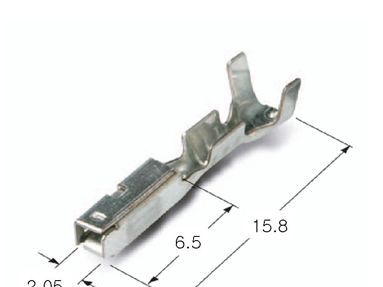

品牌:KET 型号:ST730924-3 应用范围:汽车种类:端子(terminal) 接口类型:AC/DC 支持卡数:单卡读卡类型:IC 形状:矩形制作工艺:冷压特性:防水接触件材质:Brass/Pre-Tin 绝缘体材质:P.B.T 芯数:1 针数:1 线长:5（mm）dzsc/18/2256/18225612.jpgCLASSIFICATION : Connector > Automotive > In-line > Sealed PRODUCT CATEGORY :040(RK)Part No :ST730924-3PRODUCT NAME : 040 WP FEMALE TERMINAL(RK-S) PDF :ST 730924-3.pdfWire RangeAWG22~20mm²CAVS 0.3~0.5 / CAVUS 0.3~0.5Tab Thickness0.64MaterialThick0.2FinishPre-Tin, Copper AlloyDimension(mm)L15.8E6.5W2.05TypeFEMALE TERMINAL现货供应韩国KET 汽车连接器

详细内容>>

供应德国STOCKO连接器:RSB8168.058F4.8-0.5,RSB8168.158F4.8-

信息内容：

Self locking,Low insertion forcedzsc/18/9746/18974698.jpgLRSB 8168.058 F 4.8-0.5 dzsc/18/9746/18974698.jpg0.22-0.7524-20CuSnCuZnCuNiZndzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpg 16.36.30.8DIN10 RSB 8168.055 F 4.8-0.5 dzsc/18/9746/18974698.jpg0.22-0.7524-20CuSnCuZnCuNiZndzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpg 16.36.30.5DIN10 RSB 8168.158 F 4.8-1.5 dzsc/18/9746/18974698.jpg>0.75-<2.018-14CuSnCuZnCuNiZndzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpg 16.36.30.8DIN10 RSB 8168.155 F 4.8-1.5 dzsc/18/9746/18974698.jpg>0.75-<2.018-14CuSnCuZnCuNiZndzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpgdzsc/18/9746/18974698.jpg 16.36.30.5DIN10RSB8168.058F4.8-0.5RSB8168.158F4.8-1.5RSB8178.108...

详细内容>>
