供应大功率LED隧道灯、LED隧道灯壳
| 价 格： | 1.00 | |
| 型号/规格： | kml | |
| 品牌/商标： | 柯美莱 |
| 产品型号model number | KML-LE260-W100 | ||
| LED工功耗 LEDconsumptions | 92W | ||
| 系统功耗System Consumption | 106W | ||
| ww | pw | cw | |
| LED初始光通量LED initial flux | 7544 lm | 7820 lm | 7636 lm |
| 功率因数Power factor | >0.95 | ||
| 总谐波失真Total hamornical distortion | ≤9% | ||
| 电源效率Power efficiency | >87% | ||
| 灯具效率Power efficiency | >85% | ||
| 安装高度installation height | 6M | 8M | 10M |
| 平均照度Average illuminance | >38 lux | >24.5 lux | >17 lux |
| 光斑面积llluminance Area | 10*10M | 14*14M | 17*17M |
| 照度均匀度llluminance Uniformity | >0.6 | ||
| 显色指数Color Rendering lndex | WW:RA>68;PW/CW:Ra>75 | ||
| 光束角Beam angle | 120 | ||
| 工作电压Working Voltage | DC30-36V | ||
| 输入电压lnput voltage | AC 90V-264V | ||
| 频率frequency range | 50-60HZ | ||
| LED结点温度Junction Temperature | ≤80°C | ||
| 工作环境温度Working Temperature | "-25°C～+45°C" | ||
| 防护等级lp Grade | lP65 | ||
| 光源使用寿命LED Working life-span | >50000H | ||
| 认证，证书Certificate | CE,Rohs | ||
| 包装尺寸Packing dimension | 700*365*370MM | ||
| 净/毛重Net weight/gross weight | 6KG/6.5KG | ||
| 1、材质 | ||
| 高纯度铝质反射器、灯壳及散热体；5mm高强度钢化玻璃罩；单 | ||
| 颗大功率LED光源；高效率进口恒流源。 | ||
| 2、适用场所 | ||
| 适用于隧道，地下通道，地下停车场，铁路，楼宇亮化，大面积 | ||
| 泛光照明，公共场所，广场等需要的照明场所。 |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 邹远平
- 电话：0755-29868817
- 传真：0755-81496009
- 手机：13509646665
- QQ ：

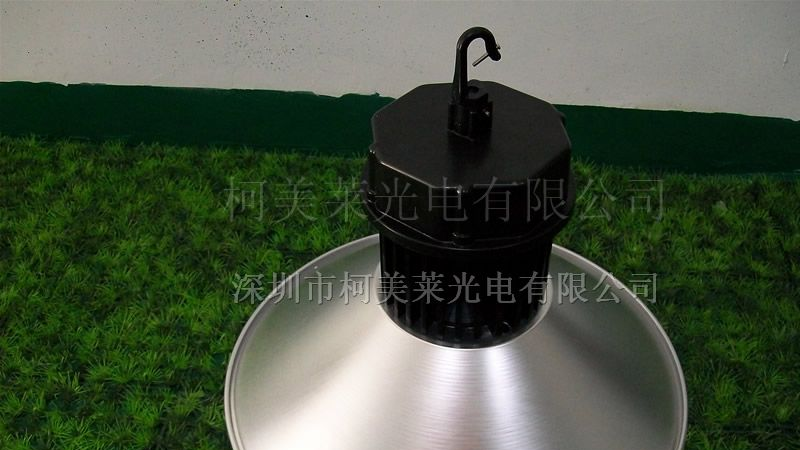

厂家直销LED工矿灯、LED工矿灯灯壳
信息内容：产品型号model number KML-LE600-W100 LED工功耗 LEDconsumptions 92W 系统功耗System Consumption 106W LED初始光通量LED initial flux ww pw cw 7544 lm 7820 lm 7636 lm 功率因数Power factor >0.98 总谐波失真Total hamornical distortion 9% 电源效率Power efficiency >82% 灯具效率Power efficiency >91% 安装高度installation height 6M 8M 10M 平均照度Average illuminance >55.4 lux >26.5 lux >14.5 lux 光斑面积llluminance Area ￠9.51M ￠15.5M ￠19M 照度均匀度llluminance Uniformity >0.7 显色指数Color Rendering lndex WW:RA>68;PW/CW:Ra>75 光束角Beam angle 45 工作电压Working Voltage DC30-36V 输入电压lnput voltage AC 85V-265V 频率frequency range 50-60HZ LED结点温度Junction Temperature ≤80°C 工作环境温度Working Temperature "-40°C～+55°C" 防护等级lp Grade lP65 光源使用寿命LED Working life-span >50000H 认证，证书Certificate CE,Rohs 包装尺寸Packing dimension 260*260*360MM 净...

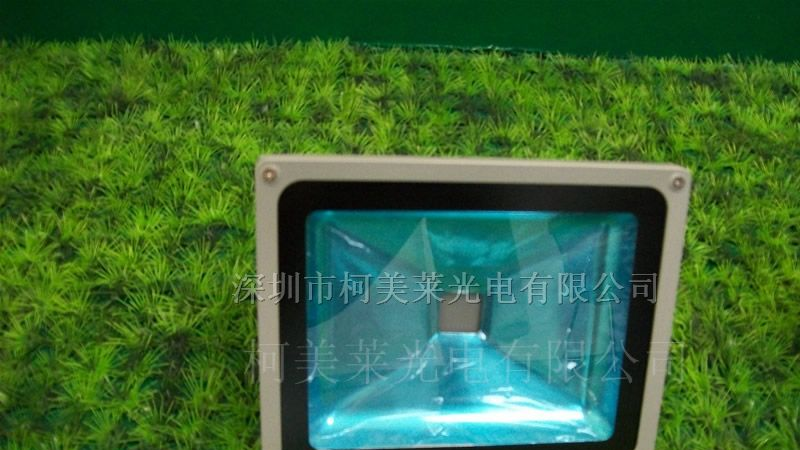

景观照明LED泛光灯、LED泛光灯壳及LED配件
信息内容：产品型号/Model number KML-002115FS-50W LED功耗/LED consumptions 36w 系统功耗 system consumptions 45W LED初始光通量LED initial flux 2952 LM 3060 LM 2988 LM 功率因数power factor >0.98 总谐波失真Total hamornical distortion ≤9% 电源效率/Power efficiency >82﹪ 灯具效率/Power efficiency >91﹪ 安装高度Installation height 4M 6M 8M 平均照度Average illuminance ﹥45 lux ﹥20.5 lux ﹥11.5 lux 光斑面积 llluminance Area 7*7M 10*10M 14*17M 照度均匀度llluminance uniformity >0.6 显色指数color Rendering lndex WW:Ra﹥68;PW/CW:Ra﹥75 光束角 Beam angle 120 工作电压 Working voltage DC30-36V 输入电压 lnput voltage AC85V-265V 频率frequency range 50HZ-60HZ LED结点温度Junction Temperature ≤80℃ 工作环境温度Working Temperature "-40℃～+55℃" 防护等级lp Grade lP65 光源使用寿命LED Working life-span ﹥50000H 认证，证书Certificate CE,Rohs 包装尺寸Packing dimension 525*270*235MM 净/毛重Net weight/gro...
