供应华德3.6X10 ICP陶冶双帽保险丝

价格：

0.15

详细介绍
企业详情

品牌:华德型号:ICP 种类:保险丝用途:电子体积:小型电压特性:安全电压形状:尖头管状熔断速度:T/慢速执行标准:欧规自动复位功能:无电压:125/250（V）电流:250MA-6.3A（A）保持电流:250MA-6.3A（A）动作温度:155（℃）温控范围:155（℃）

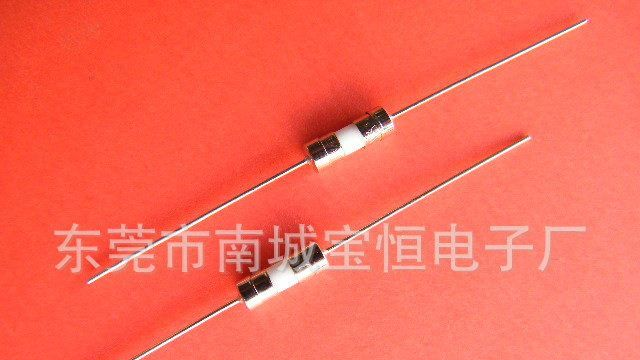

ICP3.6 x 10mm, 250V, Time Lag, Cartridge Glass Tube Fuse with Pigtail; C-UL/SEMKO/VDE/CCC/EK Approved

Country of Origin:

Taiwan

Key Specifications/Special Features:

RoHS compliance

Rated voltage:

250mA to 6.3A, 250V

Electrical properties:
Load opening time

2.1 in 2m maximum
2.75 in 400mS minimum/10s maximum
4 in 150m minimum/3s maximum
10 in 20m minimum/150m maximum

Breaking capacity:

35A or 10 in whichever is greater, tested with AC for the low breaking capacity test

Temperature characteristics:

Temperature does not exceed 75 degrees Celsius at 100% rating

Structure:

Wire: metal alloy
Cap: brass with nickel-plated
Body: ceramic tube
Lead: tinned-copper wire

C-UL:

0.01A to 6.3A, 250V

VED/SEMKO/CCC/EK:

250mA to 6.3A

With surge withstand functions

Combined with conventional over-current protection to withstand high rush current and short duration pulses
Suitable for complying with short-circuit requirement of modern compact electronic products
Saves space, especially with a neat shrink tube

To see nominal melting I²t A²Sec

Main Export Markets:

Eastern Europe

North America

Mid East/Africa

Central/South America

Asia

Western Europe

Australasia

东莞市南城宝恒电子厂

公司信息未核实

所属城市：广东东莞
[联系时请说明来自维库仪器仪表网]
联系人： 林彩华
电话：0769-22028235
传真：0769-22028235
手机：
QQ ：

公司相关产品

自产保险丝管

信息内容：

3.6X10慢断美规保险丝东莞市南城宝恒电子厂我厂生产电流保险丝.产品有通过VDE UL CCC认证.所有产品符合SGS环保.谷文龙:18002675361 0769-22028235 22494671 QQ:403733983 "

详细内容>>

供应保险丝9

信息内容：

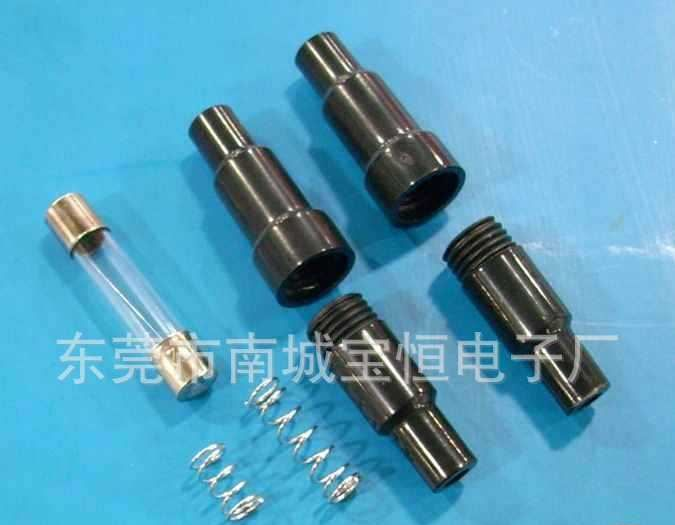

供应汽车插片保险丝座东莞市南城宝恒电子厂电话：0769-22028235 传真：0769-22494671联系人：李生 18002675361邮箱：a907c@sohu.comQQ:403733983dzsc/18/9560/18956094.jpgdzsc/18/9560/18956094.jpgdzsc/18/9560/18956094.jpg
