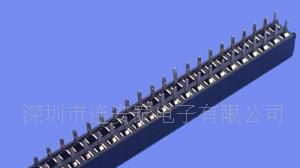

供应三排排针2.54
| 价 格： | 面议 |
品牌:L@T 型号:PH2.54*2.54 DIP 90度 三排 应用范围:广泛应用于计算机主机板、显示器、电讯卡、存储器、移动硬盘、读卡器、打印机、传真机;程控交换机、机顶盒;数码相机、摄像机、MP3、MP4、PDA、液晶电视、多煤体 种类:排针/排母/排线 接口类型:PIN HEADER 支持卡数:单卡 读卡类型:PIN HEADER 形状:条形 制作工艺:自动化机器 特性:PIN HEADER 接触件材质:黄铜 绝缘体材质:PBT,PA6T,9T,PA46,66,LCP 芯数:3~120 针数:3~120 线长:客户要求（mm）
| Current Rating | 3AMP |
| Operation Temperature: | -40℃ to +105℃ |
| Contact Resistance: | 20mΩMax |
| Insulation Resistance: | 1000MΩMin |
| Withstanding Voltage: | AC 1000V |
| Insulator Material: | Polyester(UL94V0) |
| Contact Material: | Brass |
| Contact Plating | Au or Sn over 50u'' Ni |
| Pitch: | 2.54*2.54 |
| Type Option: | Straight,Right Angle,SMT |
| Plastics Height Option: | 1.7,2.0,2.54 |
| Insulator Material Option: | PBT,PA6T,PA9T,LCP,PA46,PA66 |
| Row Option: | Single,Dual,Triple |
| No. of Pins Per Row: | 1~40 |
| Pin Length: | Custom Length Available |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陶贵林
- 电话：0755-28190986
- 传真：0755-28190986
- 手机：
- QQ ：

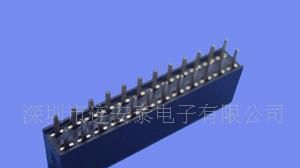

排母2.54 2*XP H8.5 Y TYPE
信息内容：Current Rating3AMPOperation Temperature:-40℃ to 105℃Contact Resistance:20mΩMaxInsulation Resistance:1000MΩMinWithstanding Voltage:AC 1000VInsulator Material:Polyester(UL94V0)Contact Material:Phosphor BronzeContact PlatingAu or Sn over 50u'' Ni Pitch:2.54*2.54Type:Y型,DIP 180度Plastics Height:5.7mm,7.1mm,8.5mm,11.0mmInsulator Material Option:PBT,PA46,PA66,PA6T,PA9T,LCPNo. of Pins:2~80"
排母2.0*2.0 2*XP H4.3 DIP
信息内容：Current Rating1.5AMPOperation Temperature:-40℃ to 105℃Contact Resistance:20mΩMaxInsulation Resistance:1000MΩMinWithstanding Voltage:AC 500VInsulator Material:Polyester(UL94V0)Contact Material:Phosphor BronzeContact PlatingAu or Sn over 50u'' Ni Pitch:2.0*2.0Type:U型,DIP 180度Plastics Height:4.0mm,4.3mm,4.6mmInsulator Material Option:PBT,PA46,PA66,PA6T,PA9T,LCPNo. of Pins:2~80
